Description

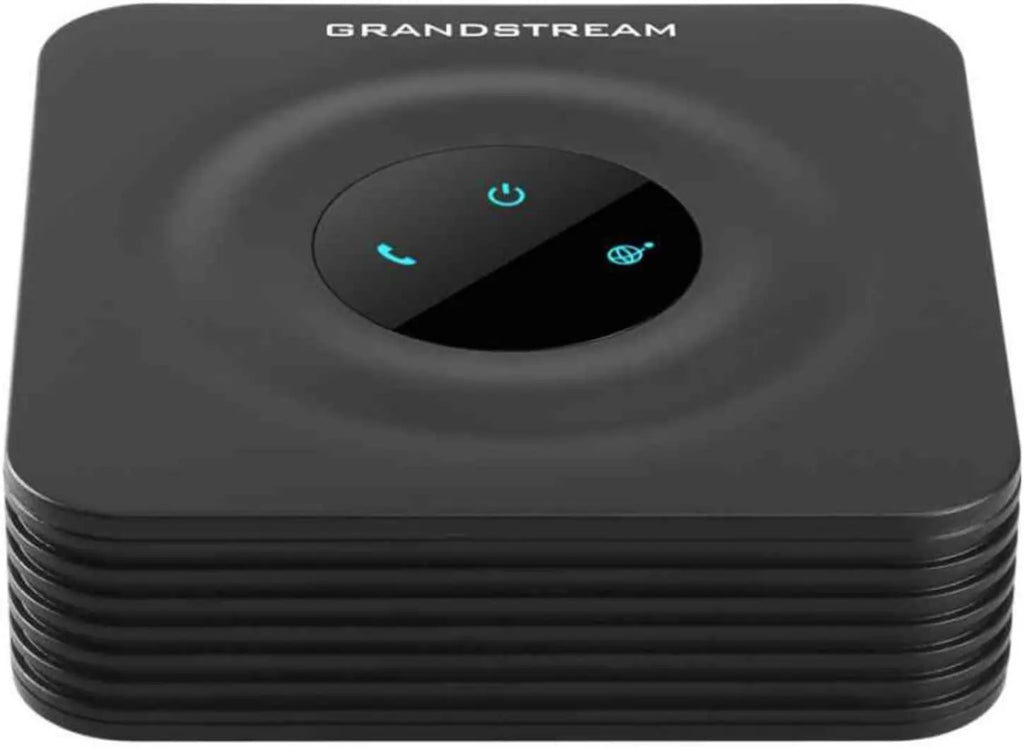

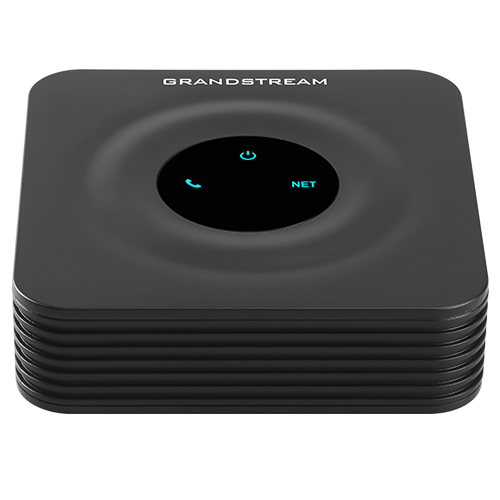

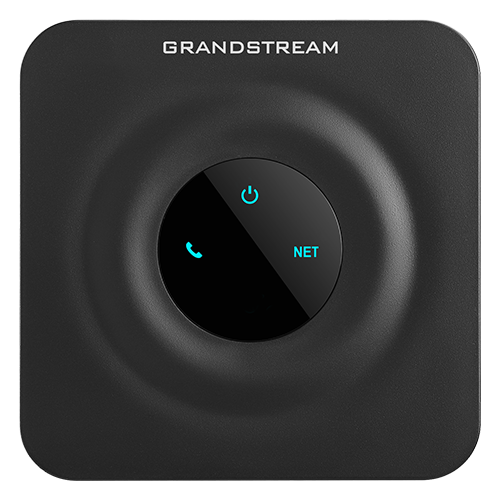

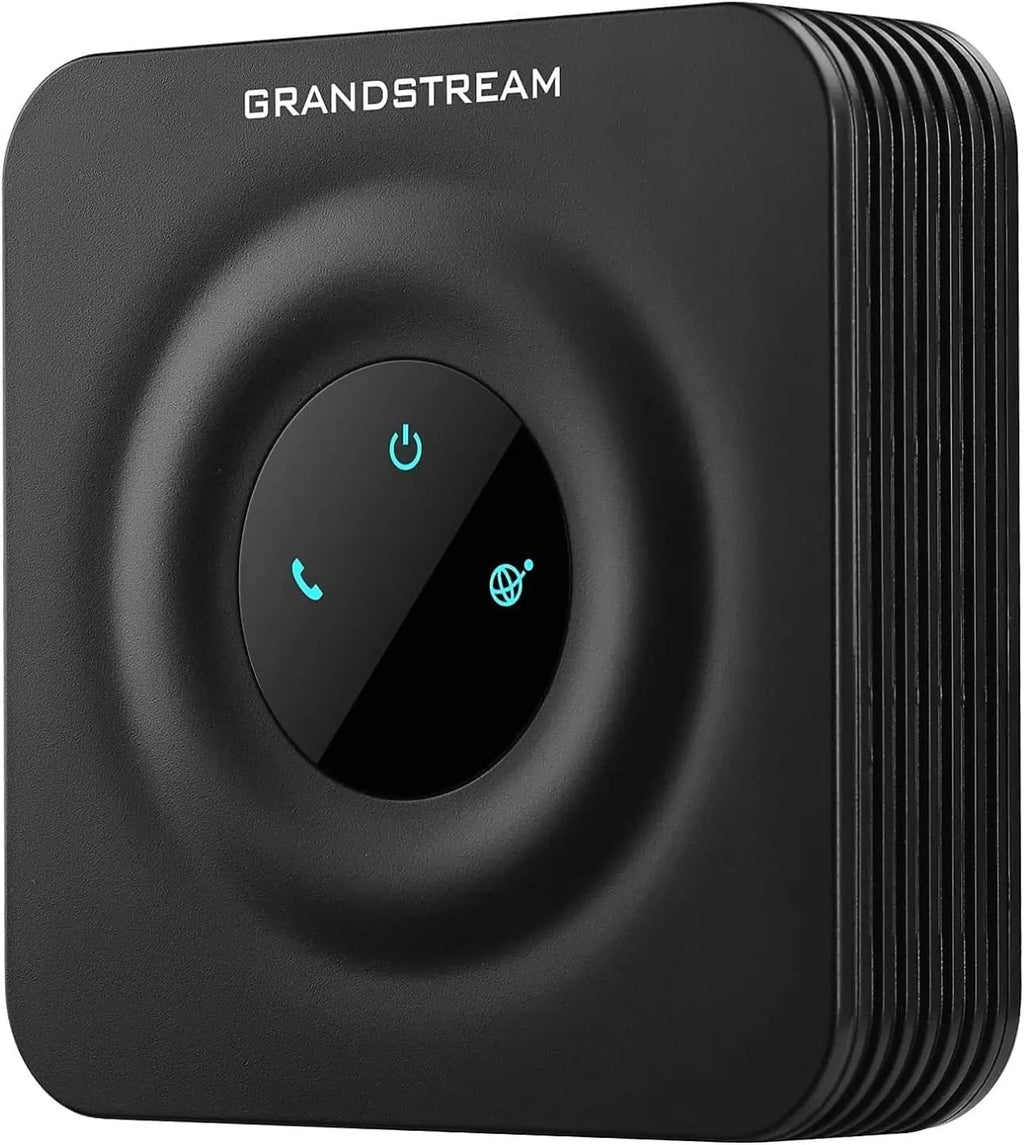

Grandstream HT801 v2 1-Port Analog Telephone Adapter (ATA)
Compact Analog-to-VoIP Gateway for Home & Small Business
The Grandstream HT801 v2 is a compact, high-performance single-port analog telephone adapter (ATA) that enables users to convert a traditional analog phone or fax machine into a secure VoIP endpoint. It is ideal for residential users, home offices, and small businesses looking for a reliable and cost-effective VoIP solution.
Key Features and Benefits
- 1 FXS port supporting a single SIP profile
- Excellent voice quality with wide codec support including Opus
- T.38 Fax-over-IP and fax pass-through support
- Automated provisioning via TR-069 and XML configuration files
- Zero-configuration provisioning with Grandstream UCM IP PBXs
- Failover SIP server support for high availability
- Enterprise-grade TLS and SRTP security encryption
- Compact, space-saving design
Reliable Analog to IP Conversion
The HT801 v2 allows existing analog phones and fax machines to seamlessly connect to IP-based telephony systems, extending the life of legacy devices while upgrading to modern VoIP infrastructure.
Secure & Feature-Rich VoIP Communications
Advanced security features such as encrypted provisioning, TLS signaling, and SRTP media encryption protect calls and credentials while offering essential telephony features like call forwarding, call waiting, and conferencing.
Ideal for Residential & SOHO Deployments
With simple installation, automated provisioning, and compatibility with Grandstream UCM IP PBXs, the HT801 v2 is perfect for home users, remote workers, and small office environments.
Part Details:
Grandstream HT801 v2 Analog Telephone Adapter – 1× FXS port, SIP VoIP gateway, T.38 Fax support, TLS/SRTP security.
Additional Information:
Interfaces

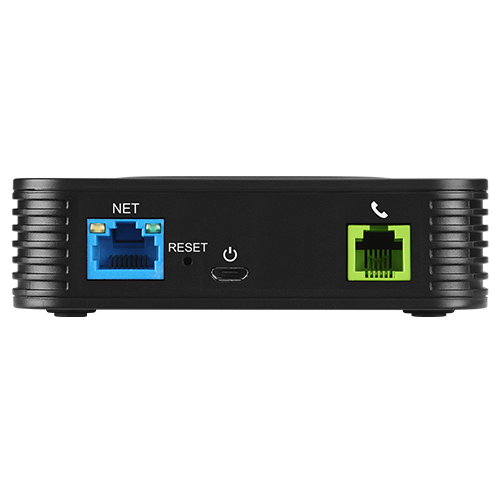

Network Interface: 1 × 10/100Mbps Ethernet (RJ45)
LED Indicators: Power, NET, Phone
Factory Reset Button: Yes
Voice, Fax & Telephony Features
Call waiting, hold, forward, DND
Blind & attended transfer
3-way voice conferencing
Fax-over-IP: T.38 Group 3 (up to 14.4 kbps)
Fax pass-through via G.711
Voice Codecs
G.722, G.723.1, G.729A/B
G.726-32, iLBC, Opus
Dynamic jitter buffer
Advanced line echo cancellation
Network & Signaling
RTP/RTCP, SRTP
TCP/IP, UDP, HTTP/HTTPS
DNS, DHCP, NTP, TFTP
SNMP, TR-069, STUN
QoS: VLAN, DiffServ, MPLS
Security & Management
Control encryption: TLS / HTTPS / SIPS
Provisioning: HTTP, HTTPS, SSH, TFTP, TR-069
Secure AES-encrypted provisioning
Syslog & remote web management
Power & Environmental
Power Output: 5V DC / 1A
Operating Temperature: 0°C – 40°C (32°F – 104°F)
Storage Temperature: -10°C – 60°C
Humidity: 10% – 90% non-condensing
Physical Specifications
Weight: ~114 g (without package)
Package Contents
Power adapter
Ethernet cable
Quick Start Guide
***ONE YEAR LIMITED MANUFACTURER'S WARRANTY INCLUDED
Browse more Grandstream VoIP gateways and accessories here .
