Description
TP-Link EAP670 AX5400 WiFi 6 Ceiling Mount Access Point
High-Performance Business WiFi 6 Access Point with 2.5GbE
The TP-Link EAP670 is an AX5400 dual-band WiFi 6 ceiling mount access point designed for high-performance business wireless networks. It delivers up to 4,804 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, providing high-speed wireless connectivity for offices, hospitality environments, education, meeting rooms, and other demanding business deployments.
With a 2.5 Gigabit Ethernet port, 160 MHz channel support, OFDMA, MU-MIMO, 1024-QAM, Omada Mesh, seamless roaming, and centralized cloud management, the EAP670 provides a flexible foundation for modern high-density wireless networks.
Key Features and Benefits
- AX5400 dual-band WiFi 6 wireless performance
- Up to 4,804 Mbps on 5 GHz
- Up to 574 Mbps on 2.4 GHz
- 1 × 2.5 Gigabit Ethernet RJ45 port
- IEEE 802.3at PoE support
- DC power support with power adapter included
- 160 MHz channel bandwidth with HE160
- OFDMA and MU-MIMO for efficient multi-device connectivity
- 1024-QAM for improved wireless data efficiency
- Omada Mesh technology for flexible wireless deployment
- Seamless roaming for uninterrupted wireless connectivity
- Centralized Omada cloud management
- Supports up to 16 SSIDs, with up to 8 SSIDs per band
- Band steering, load balancing, airtime fairness, and beamforming
- WPA, WPA2, and WPA3 Personal and Enterprise security
- Ceiling and wall mounting kits included
Fast AX5400 WiFi 6 Performance
The EAP670 combines dual-band WiFi 6 technology with high wireless throughput for demanding business environments. It provides up to 4,804 Mbps at 5 GHz and 574 Mbps at 2.4 GHz, delivering a combined AX5400-class wireless performance for compatible client devices.
Multi-Gigabit Wired Connectivity

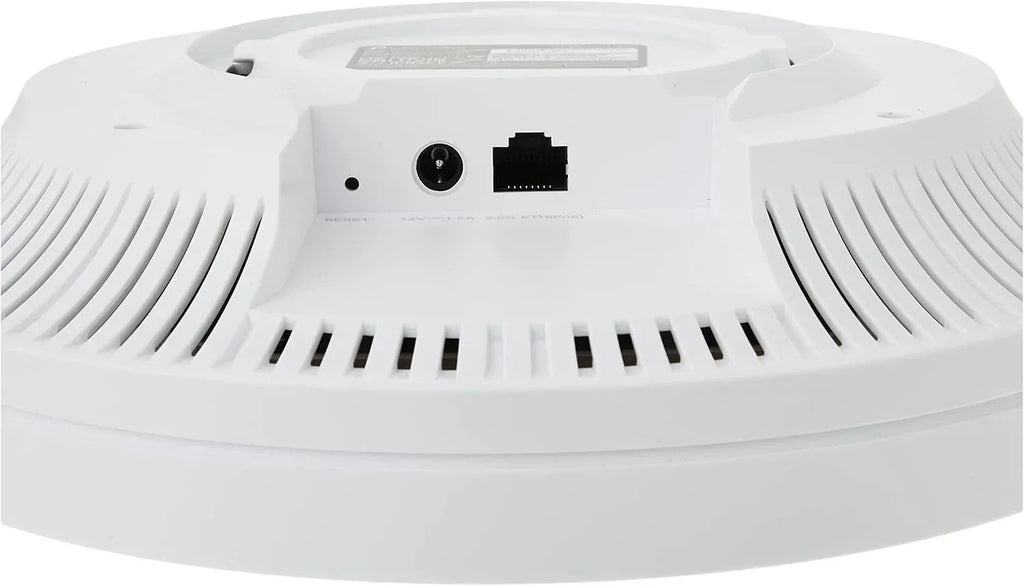

A built-in 2.5 Gigabit Ethernet port provides high-speed wired connectivity between the access point and the network. The EAP670 also supports IEEE 802.3at PoE, allowing flexible installation without requiring a separate power connection at the access point location.
High-Efficiency WiFi 6 Networking
WiFi 6 technologies including OFDMA, MU-MIMO, 1024-QAM, and 160 MHz channel bandwidth help improve wireless efficiency and performance when multiple devices are connected. These features make the EAP670 suitable for busy offices, hospitality, education, meeting rooms, and other environments with demanding wireless traffic.
Omada Mesh and Seamless Roaming
The EAP670 supports Omada Mesh for flexible wireless deployment and seamless roaming to help maintain connectivity as users move between compatible access points. These capabilities make it suitable for expanding wireless coverage across larger business environments.
Centralized Omada Network Management
Integrated with the Omada SDN platform, the EAP670 can be centrally managed through compatible Omada management solutions. Centralized management helps simplify network configuration, monitoring, deployment, and administration across multiple access points and network locations.
Business Deployment Applications:
- Office Networks: Stable, high-performance wireless connectivity for employees and business devices
- Hospitality: Wireless coverage for guest and business networks
- Education: High-efficiency WiFi for connected users and devices
- Meeting Rooms: Fast connectivity for video conferencing, streaming, and downloads
- Shopping & Commercial Spaces: Flexible wireless coverage for customer and business connectivity
Additional Information:
Wireless Performance
Frequency: 2.4 GHz and 5 GHz
5 GHz Signal Rate: Up to 4804 Mbps
2.4 GHz Signal Rate: Up to 574 Mbps
WiFi Class: AX5400
Concurrent Clients: 250+
Channel Bandwidth: Up to 160 MHz
Network Interface & Power
PoE Standard: IEEE 802.3at
DC Power: 12 V / 1.5 A
Power Adapter: Included
Mounting: Ceiling / Wall Mounting
Mounting Kits: Included
Wireless Features
4× Longer OFDM Symbol
OFDMA
MU-MIMO
HE160 160 MHz Bandwidth
Omada Mesh
Seamless Roaming
Band Steering
Load Balance
Airtime Fairness
Beamforming
Automatic Channel Assignment
Transmit Power Control
QoS / WMM
Rate Limit
Wireless Scheduling
Wireless Statistics
Wireless Security
Captive Portal Authentication
Access Control
Wireless MAC Address Filtering
Wireless Client Isolation
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal / Enterprise
WPA2-Personal / Enterprise
WPA3-Personal / Enterprise
Omada Management
Centralized Cloud Management: Supported
Zero-Touch Provisioning: Supported with compatible Omada controller
Management: Local or cloud-based through compatible Omada management solutions
Antenna & Physical Specifications
2.4 GHz Antenna: 2 × 4 dBi
5 GHz Antenna: 4 × 5 dBi
Dimensions: 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
Mounting: Ceiling / Wall Mounting
Design: Compact ceiling-mount access point
Environmental Specifications
Storage Temperature: -40°C - 70°C (-40°F - 158°F)
Operating Humidity: 10% - 90% RH, non-condensing
Storage Humidity: 5% - 90% RH, non-condensing
Certifications & Package Contents
Package Contents: EAP670 access point
Power Adapter
Ceiling / Wall / Junction Mounting Kits
Installation Guide
***ONE YEAR LIMITED MANUFACTURER'S WARRANTY INCLUDED
Explore more TP-Link Omada networking products and wireless solutions here.
For more information regarding the TP-Link EAP670, visit the official TP-Link Omada website.
