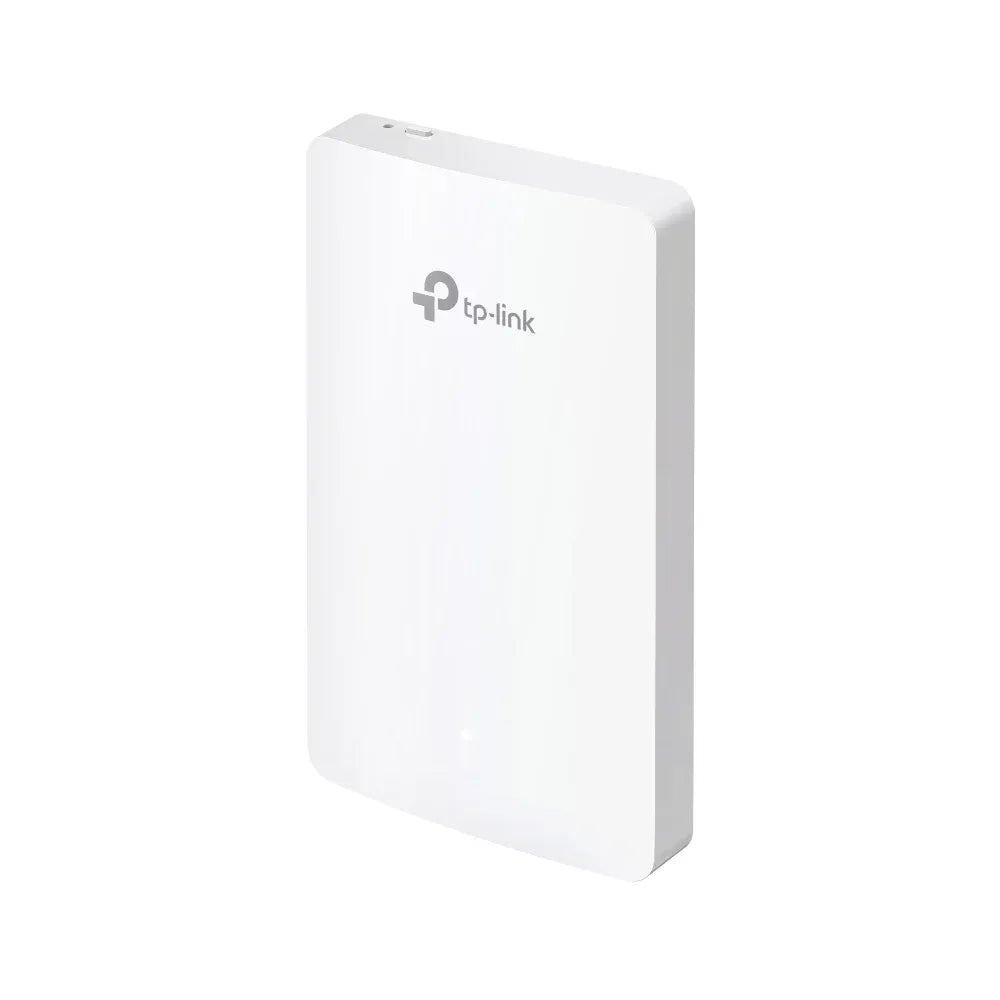

TP-Link EAP615-Wall AX1800 WiFi 6 Wall Plate Access Point
AX1800 WiFi 6 Access Point for Business & Hospitality
The TP-Link EAP615-Wall is an AX1800 WiFi 6 wall plate access point designed to deliver fast, reliable wireless connectivity in offices, hotels, restaurants, retail locations, and other business environments. With combined wireless speeds of up to 1775 Mbps, four Gigabit Ethernet ports, PoE support, and centralized Omada management, it provides efficient room-level wireless coverage with flexible wired connectivity.
Key Features and Benefits
- AX1800 WiFi 6 speeds up to 1775 Mbps
- Up to 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- WiFi 6 technologies including OFDMA, MU-MIMO, BSS Coloring, and Beamforming
- Four Gigabit Ethernet ports with 1 uplink and 3 downlinks
- One downlink port supports PoE pass-through
- 802.3af/at Power over Ethernet support
- Centralized management through the Omada SDN platform
- Omada App support for configuration and network monitoring
- Up to 16 SSIDs with up to 8 SSIDs on each wireless band
- WPA3-Personal and WPA3-Enterprise wireless security
- Wall plate design compatible with 86 mm, EU, and US junction boxes
- Supports seamless roaming, Omada Mesh, band steering, and load balancing

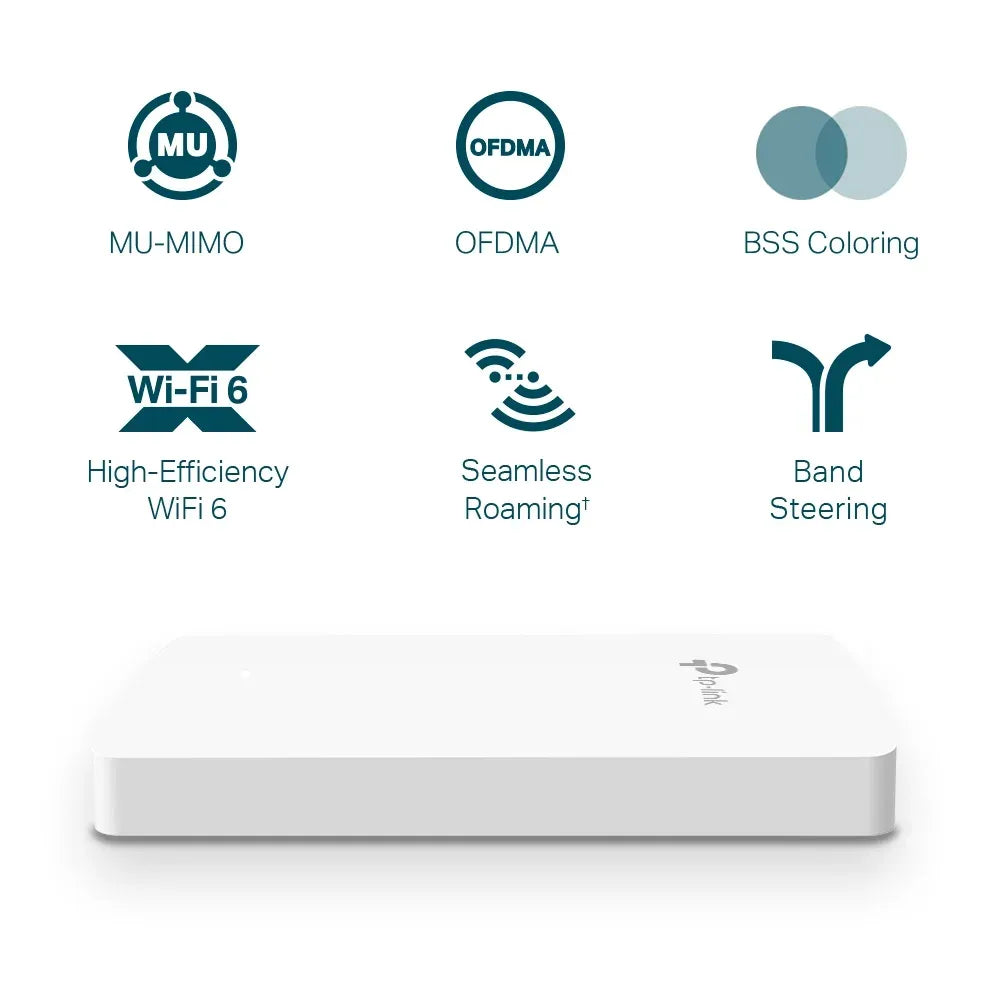

Fast WiFi 6 Performance
The EAP615-Wall uses WiFi 6 technology to provide efficient wireless performance for connected devices. It supports up to 1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, delivering combined AX1800-class wireless speeds of up to 1775 Mbps.

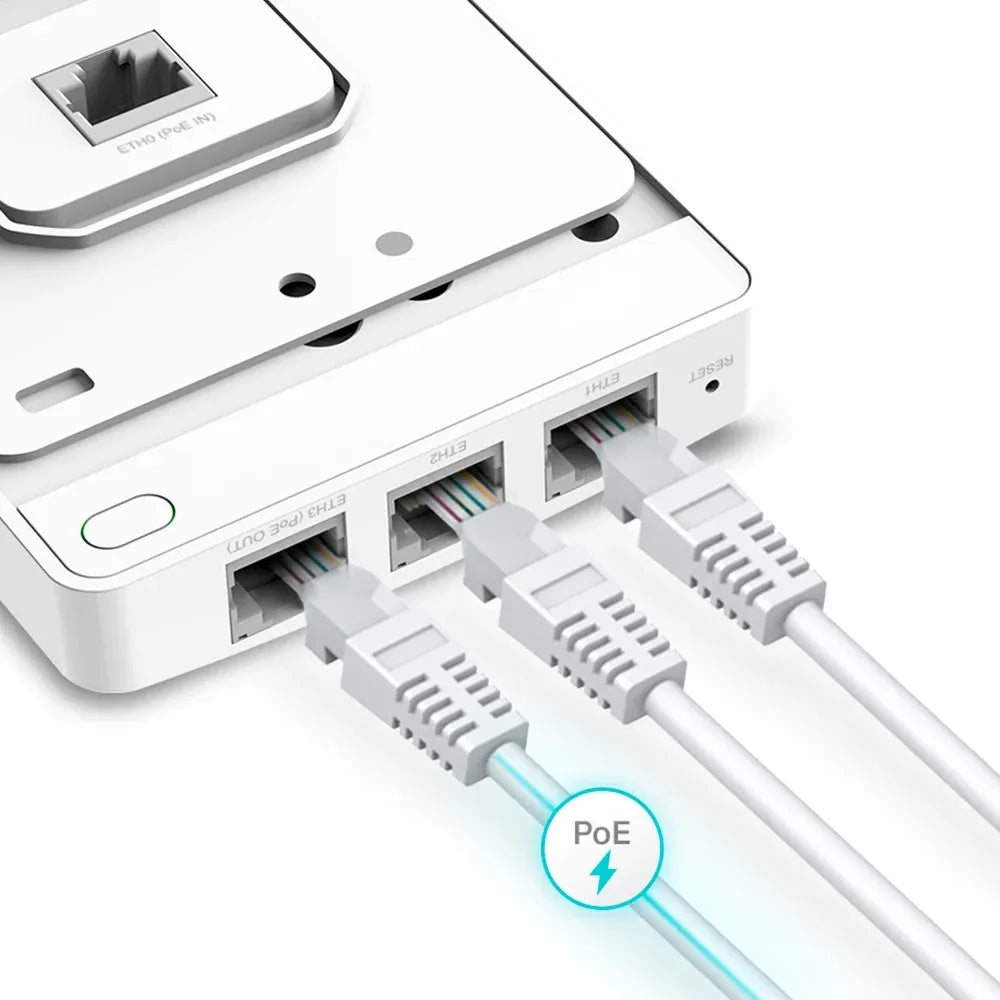

Four Gigabit Ethernet Ports
Built with four Gigabit Ethernet ports, the EAP615-Wall provides one uplink port and three downlink ports for connecting wired devices such as VoIP phones, printers, PCs, and smart TVs. One downlink port supports PoE pass-through when the access point receives 802.3at PoE input.
Centralized Omada Management
The EAP615-Wall integrates with the TP-Link Omada SDN platform, allowing centralized network management through compatible Omada hardware, software, or cloud-based controllers. Administrators can monitor the network, manage clients, configure wireless settings, and manage multiple sites from a centralized platform.
Secure Business WiFi
Designed for business networking, the EAP615-Wall supports WPA, WPA2, and WPA3-Personal and Enterprise security, VLANs, wireless isolation, MAC authentication, 802.1X, rogue AP detection, and captive portal authentication for supported Omada deployments.

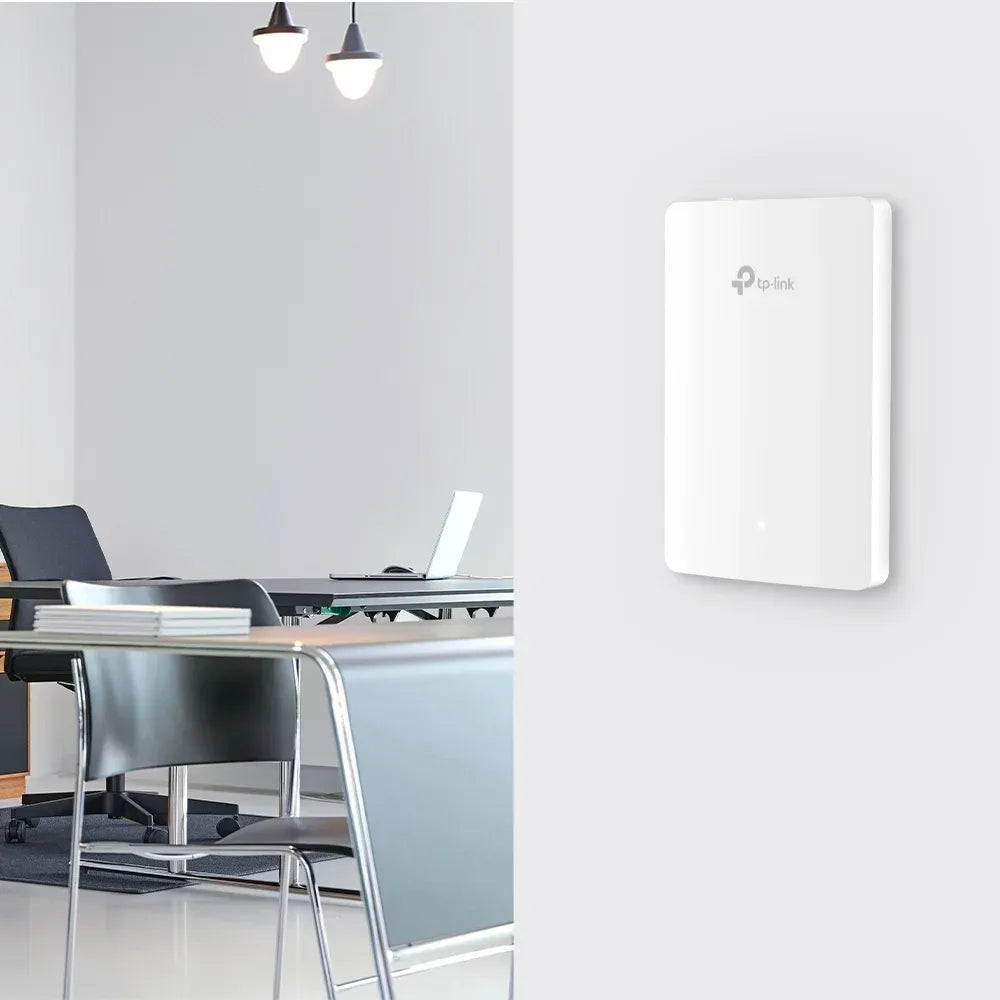

Easy Wall Plate Installation
The compact wall plate design provides a clean installation while supporting 86 mm, standard EU, and standard US wall junction boxes. Power can be supplied through 802.3af/at PoE, helping simplify installation without requiring a separate electrical connection at the access point.
Additional Information:
Wireless Performance
Wireless Class: AX1800
Frequency: 2.4 GHz and 5 GHz
5 GHz Speed: Up to 1201 Mbps
2.4 GHz Speed: Up to 574 Mbps
Maximum Combined Speed: Up to 1775 Mbps
Concurrent Clients: 120+
Coverage: Approximately 600 ft² under laboratory testing conditions
Ethernet & PoE
Downlinks: 3 × 10/100/1000 Mbps Ethernet ports
PoE Input: 802.3af/at PoE
PoE Pass-Through: Supported on one downlink port
Maximum PoE Pass-Through Output: 13 W EU version or 12 W US version
PoE Pass-Through requires 802.3at PoE input
Wireless Features
MU-MIMO
OFDMA
BSS Coloring
Beamforming
Band Steering
Airtime Fairness
Load Balance
Rate Limit
QoS with WMM
Automatic Channel Assignment
Transmit Power Control
Omada Mesh
Seamless Roaming with 802.11k/v/r
Wireless Scheduling
Reboot Scheduling
RADIUS Accounting
Security & Authentication
WPA2-Personal/Enterprise
WPA3-Personal/Enterprise
Captive Portal Authentication
Access Control
Wireless MAC Address Filtering
Wireless Client Isolation
VLAN Support
Rogue AP Detection
802.1X Support
MAC Authentication
Omada Management
Centralized Management: Omada Hardware Controller, Software Controller, or Cloud-Based Controller
Cloud Access: Yes, requires an Omada controller
Multi-Site Management: Yes
Management VLAN: Yes
L3 Management: Yes
Zero-Touch Provisioning: Yes, requires Omada Cloud-Based Controller
Web Management: HTTP/HTTPS
SSH: Yes
SNMP: v1, v2c, v3
Local/Remote Syslog: Yes
Email Alerts: Yes
LED ON/OFF Control: Yes
Hardware & Physical Specifications
Antennas: 2 Dual-Band Antennas
2.4 GHz Antennas: 2 × 3 dBi
5 GHz Antennas: 2 × 4 dBi
Mounting: Wall Plate Mounting
Physical Security Lock: Yes
Reset Button: Yes
Power & Environmental
Maximum Power Consumption: 10 W EU / 11.5 W US with 802.3at PoE and PoE Out off
Operating Temperature: 0-40 °C (32-104 °F)
Storage Temperature: -40-70 °C (-40-158 °F)
Operating Humidity: 10-90% RH, non-condensing
Storage Humidity: 5-90% RH, non-condensing
Installation & Compatibility
Compatible Junction Boxes: 86 mm, Standard EU, Standard US
System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
Certifications & Package Contents
Package Contents: EAP615-Wall, Installation Guide, Mounting Kit
ONE YEAR LIMITED MANUFACTURER'S WARRANTY INCLUDED
Explore more TP-Link Omada networking products and wireless solutions here.
For more information regarding the TP-Link EAP615-Wall, visit the official TP-Link Omada website.
