Description

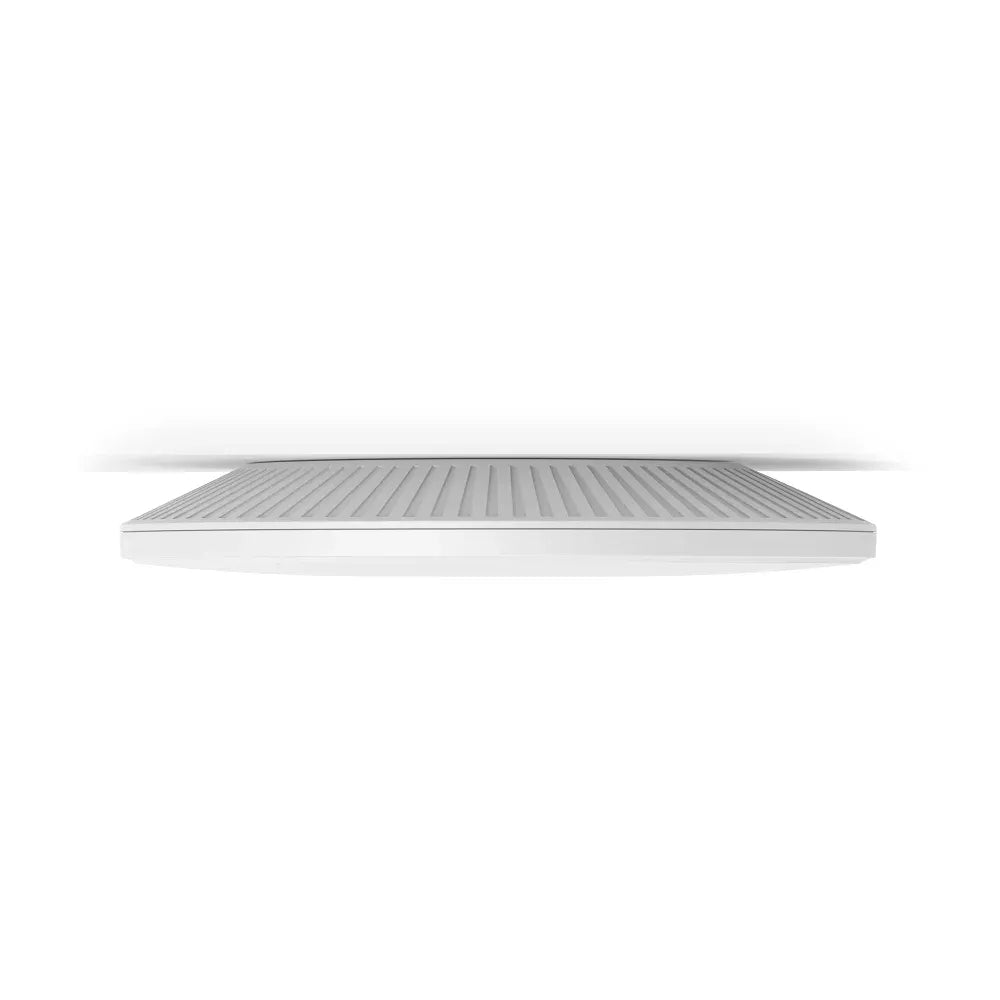

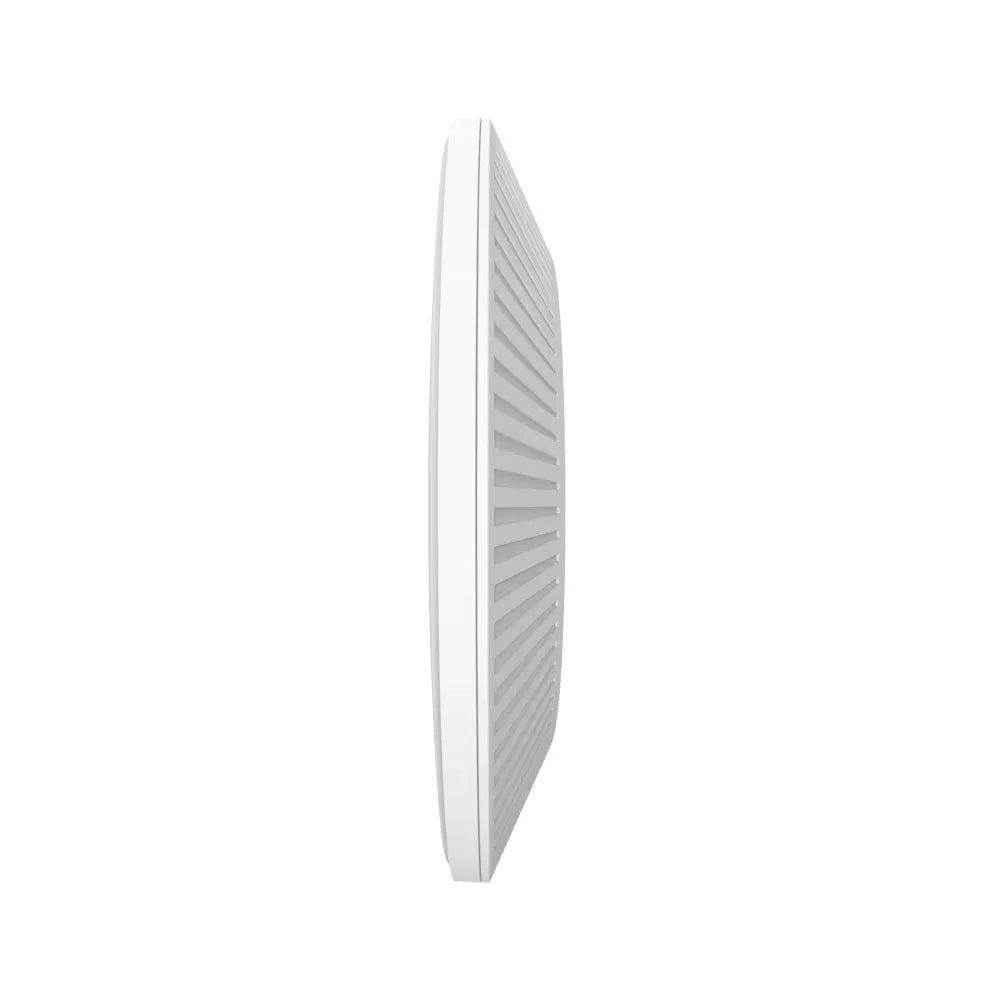

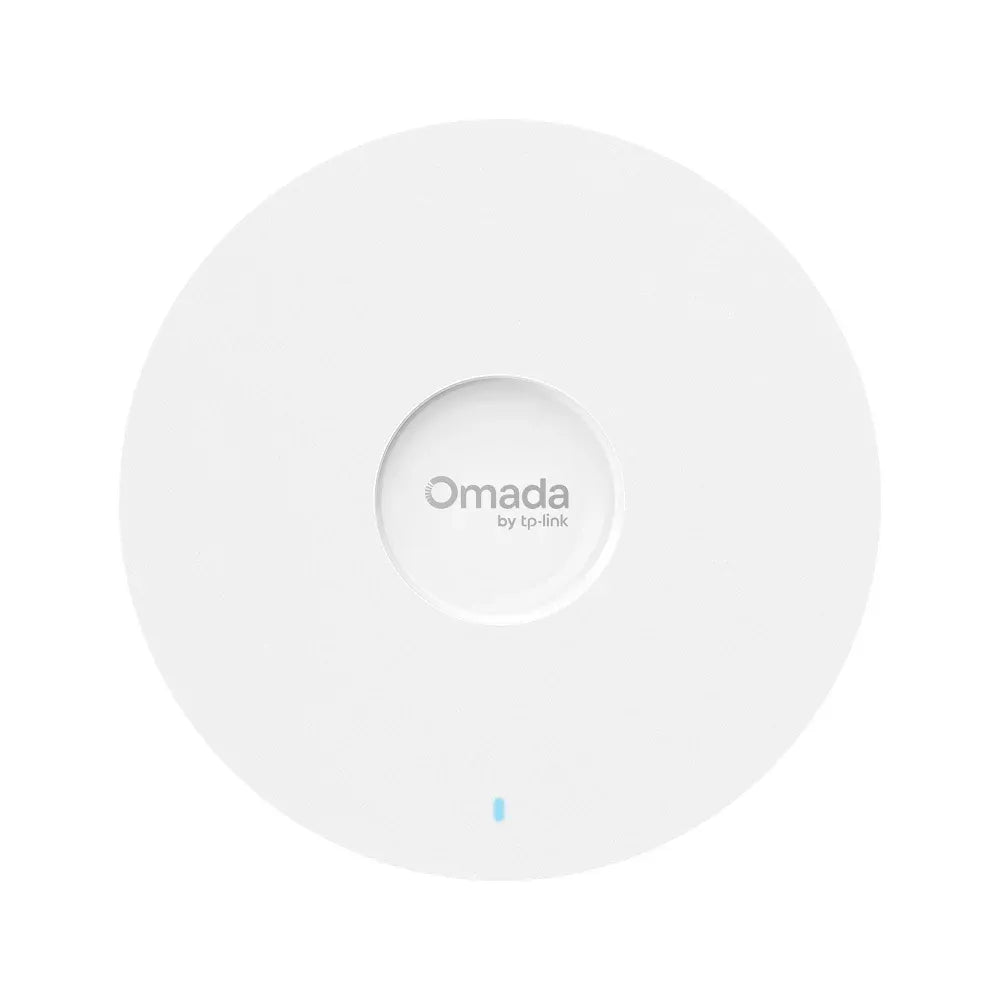

TP-Link EAP673 AX5400 WiFi 6 Ceiling Mount Access Point
High-Performance WiFi 6 for Business & Enterprise Networks
The TP-Link EAP673 is an AX5400 WiFi 6 ceiling mount access point designed to deliver fast, reliable wireless connectivity for business, office, hospitality, education, and high-density network environments. With dual-band WiFi 6 speeds of up to 4,804 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, the EAP673 provides high-capacity wireless performance for demanding networks.
Its 2.5 Gigabit Ethernet port helps eliminate wired network bottlenecks, while 802.3at PoE support enables flexible installation without requiring a separate power connection at the access point. The EAP673 also supports Omada Mesh, seamless roaming, centralized management, and advanced wireless security when used with an Omada controller.
Key Features and Benefits
- AX5400 dual-band WiFi 6 with up to 4,804 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- 1× 2.5 Gigabit Ethernet port for high-speed network connectivity
- 802.3at PoE support for flexible installation
- Supports 160 MHz bandwidth, OFDMA, MU-MIMO and 1024-QAM
- Supports 250+ concurrent client connections
- Coverage of up to 1,500 ft² (140 m²) under laboratory testing conditions
- Omada Mesh and seamless roaming with an Omada controller
- Centralized cloud, hardware or software-based Omada management
- Up to 16 SSIDs, with 8 SSIDs available on each band
- WPA3-Personal and WPA3-Enterprise wireless security
Fast AX5400 WiFi 6 Performance
The EAP673 combines WiFi 6 technology with high-speed wireless throughput for modern business networks. The 5 GHz band delivers speeds of up to 4,804 Mbps, while the 2.4 GHz band supports up to 574 Mbps. OFDMA and MU-MIMO help improve wireless efficiency when multiple devices are connected simultaneously.
2.5GbE Connectivity with PoE+
A 2.5 Gigabit RJ45 port provides multi-gigabit wired connectivity between the access point and network infrastructure. The EAP673 supports 802.3at PoE, allowing compatible network infrastructure to provide power and data over a single Ethernet connection for convenient deployment.
Built for High-Density Wireless Networks
The EAP673 supports 250+ concurrent clients and includes advanced WiFi 6 technologies such as 160 MHz bandwidth, OFDMA, MU-MIMO, beamforming and 1024-QAM. These features make it well suited for offices, commercial environments, hospitality, education and other locations requiring reliable wireless access for numerous devices.
Omada Centralized Network Management
The EAP673 integrates with the TP-Link Omada SDN platform for centralized network management. Compatible management options include an Omada cloud-based controller, hardware controller or software controller. Omada management provides features such as multi-site management, management VLAN, monitoring, alerts and zero-touch provisioning when supported by the appropriate Omada controller.
Secure Business WiFi
Multiple wireless security and access-control features help protect business networks. The EAP673 supports WPA-Personal, WPA-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA3-Personal and WPA3-Enterprise, along with captive portal authentication, wireless isolation, MAC address filtering, rogue AP detection and 802.1X support.
Additional Information:
Wireless Performance
Wireless Class: AX5400
5 GHz Speed: Up to 4804 Mbps
2.4 GHz Speed: Up to 574 Mbps
Frequency: 2.4 GHz and 5 GHz
Concurrent Clients: 250+
Coverage: Up to 1500 ft² (140 m²) under laboratory testing conditions
Network Interface & Power
PoE: 802.3at PoE
DC Power: 12 V / 2 A
Power Adapter: Not Included
WiFi Features
4× Longer OFDM Symbol
OFDMA
MU-MIMO
HE160 / 160 MHz Bandwidth
Beamforming
Band Steering
Airtime Fairness
Load Balance
QoS / WMM
Automatic Channel Assignment
Transmit Power Control
Omada Mesh
Seamless Roaming 802.11k/v/r
Up to 16 SSIDs, 8 per band
Wireless Security
WPA2-Personal / Enterprise
WPA3-Personal / Enterprise
Captive Portal Authentication
Access Control
Wireless MAC Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
Management Features
Centralized Management: Omada Cloud-Based Controller, Hardware Controller and Software Controller
Cloud Access: Yes, requires an Omada controller
Multi-Site Management: Yes
Management VLAN: Yes
Zero-Touch Provisioning: Yes, requires Omada Cloud-Based Controller
SNMP: v1, v2c, v3
SSH: Yes
Web Management: HTTP / HTTPS
L3 Management: Yes
Email Alerts: Yes
Local / Remote Syslog: Yes

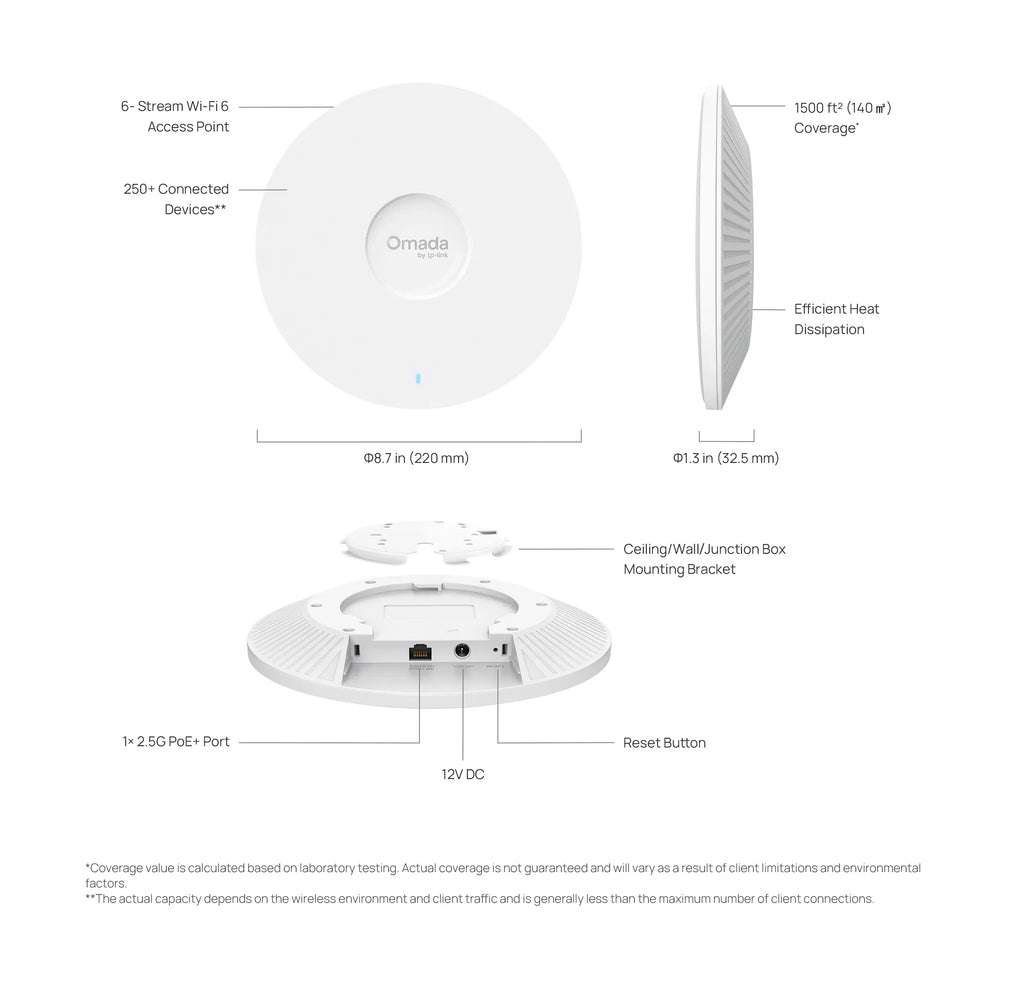

Antennas & Physical Specifications
2.4 GHz Antenna: 2× 4 dBi
5 GHz Antenna: 4× 5 dBi
Bluetooth: Version 5.2
Dimensions: 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)

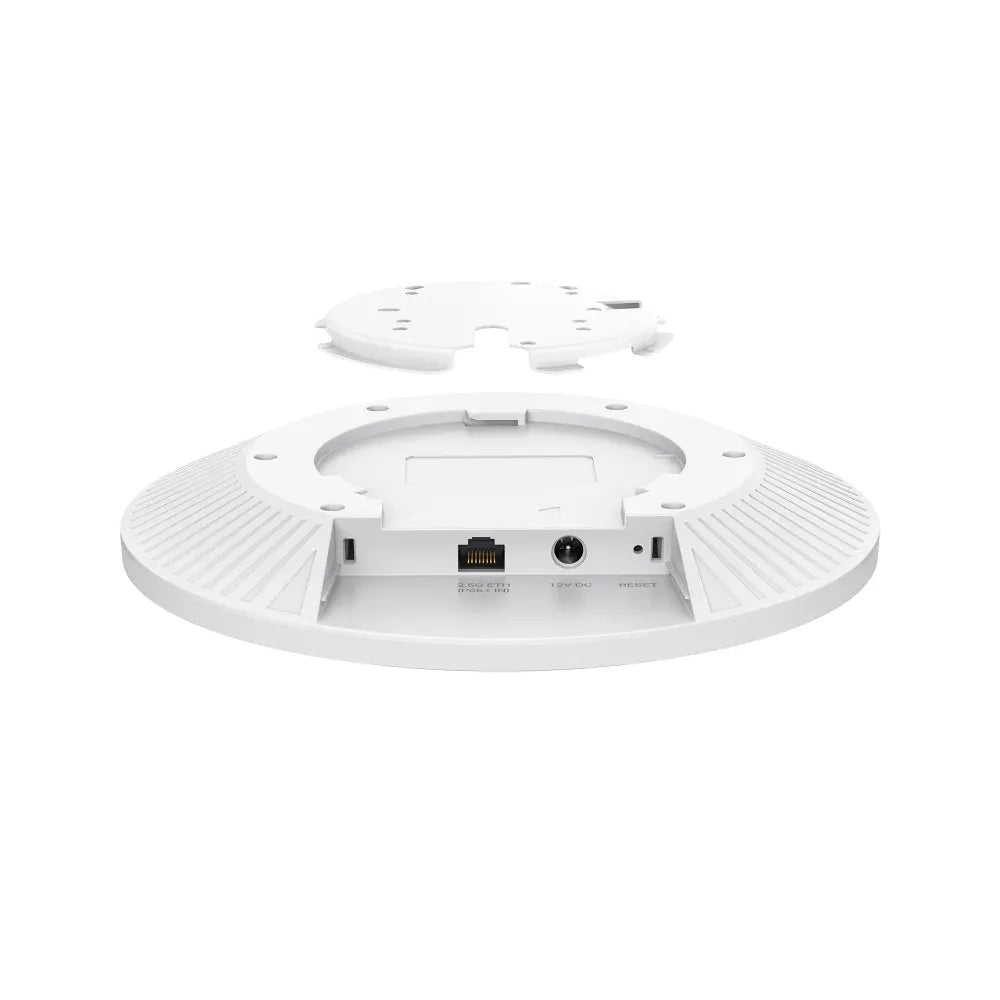

Mounting: Ceiling / Wall / Junction Box
Mounting Kits: Included
Reset Button: Yes
Environmental Specifications
Storage Temperature: -40-70 °C (-40-158 °F)
Operating Humidity: 10-90% RH, non-condensing
Storage Humidity: 5-90% RH, non-condensing
Package Contents
Ceiling / Wall / Junction Box Mounting Kits
Installation Guide
Cable Compartment Cover
