Description
TP-Link EAP725-Wall BE5000 WiFi 7 Wall Plate Access Point
High-Performance WiFi 7 for Business, Hospitality & Enterprise
The TP-Link EAP725-Wall is a BE5000 Wall Plate WiFi 7 Access Point designed to deliver high-speed, low-latency wireless connectivity in hotels, offices, apartments, restaurants, retail locations, and other business environments. With WiFi 7 performance of up to 4324 Mbps on 5 GHz and 688 Mbps on 2.4 GHz, the EAP725-Wall provides fast and reliable connectivity for demanding networks and modern connected devices.
Built for flexible in-room networking, the EAP725-Wall features a 2.5G PoE input port, 2.5G PoE pass-through port, and two Gigabit Ethernet downlink ports. It supports 802.3at/bt PoE, Omada centralized management, cloud access, seamless roaming, and Omada Mesh for scalable business deployments.
Key Features and Benefits
- BE5000 dual-band WiFi 7 performance
- Up to 4324 Mbps on 5 GHz and 688 Mbps on 2.4 GHz
- 1 × 2.5G Ethernet PoE input port
- 1 × 2.5G Ethernet PoE pass-through port
- 2 × Gigabit Ethernet downlink ports
- 802.3at/bt PoE support for flexible deployment
- WiFi 7 features including MLO, Multi-RUs, 4K-QAM, and 240 MHz bandwidth
- Up to 250+ concurrent client connections
- Up to 750 ft² (70 m²) coverage under laboratory testing conditions
- Centralized management with Omada Cloud, Hardware, or Software Controller
- Supports Omada Mesh and Seamless Roaming with compatible Omada deployments
- Wall-mount design with mounting screws included
Next-Generation WiFi 7 Performance
The EAP725-Wall uses WiFi 7 technology to deliver high wireless throughput and improved network efficiency. It provides up to 4324 Mbps on the 5 GHz band and 688 Mbps on the 2.4 GHz band, making it suitable for high-bandwidth business applications, streaming, cloud services, and dense client environments.
Advanced WiFi 7 Technologies
The access point supports advanced WiFi 7 technologies including Multi-Link Operation (MLO), Multi-RUs, 4K-QAM, and 240 MHz channel bandwidth. These features are designed to improve wireless performance and reduce latency when supported by compatible client devices.

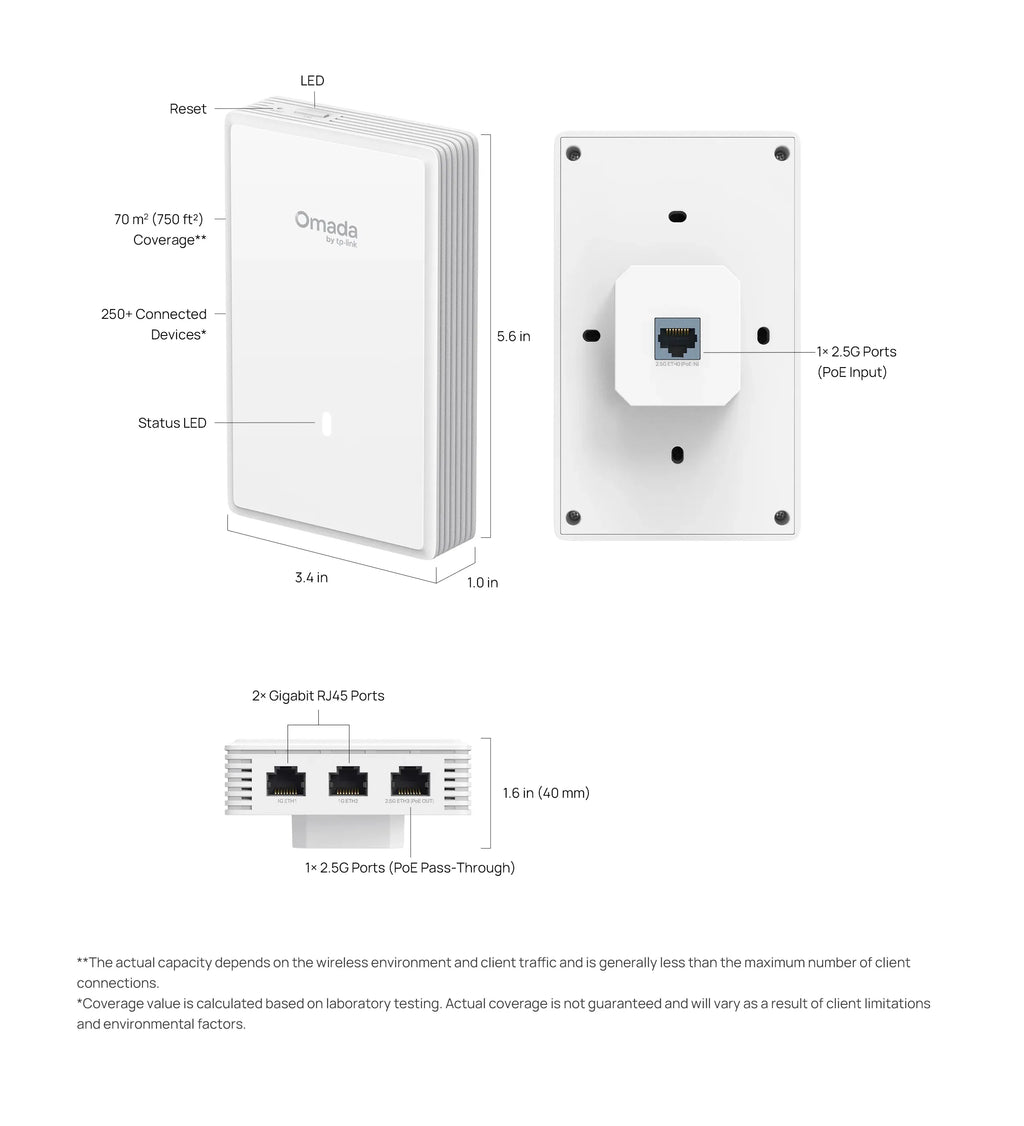

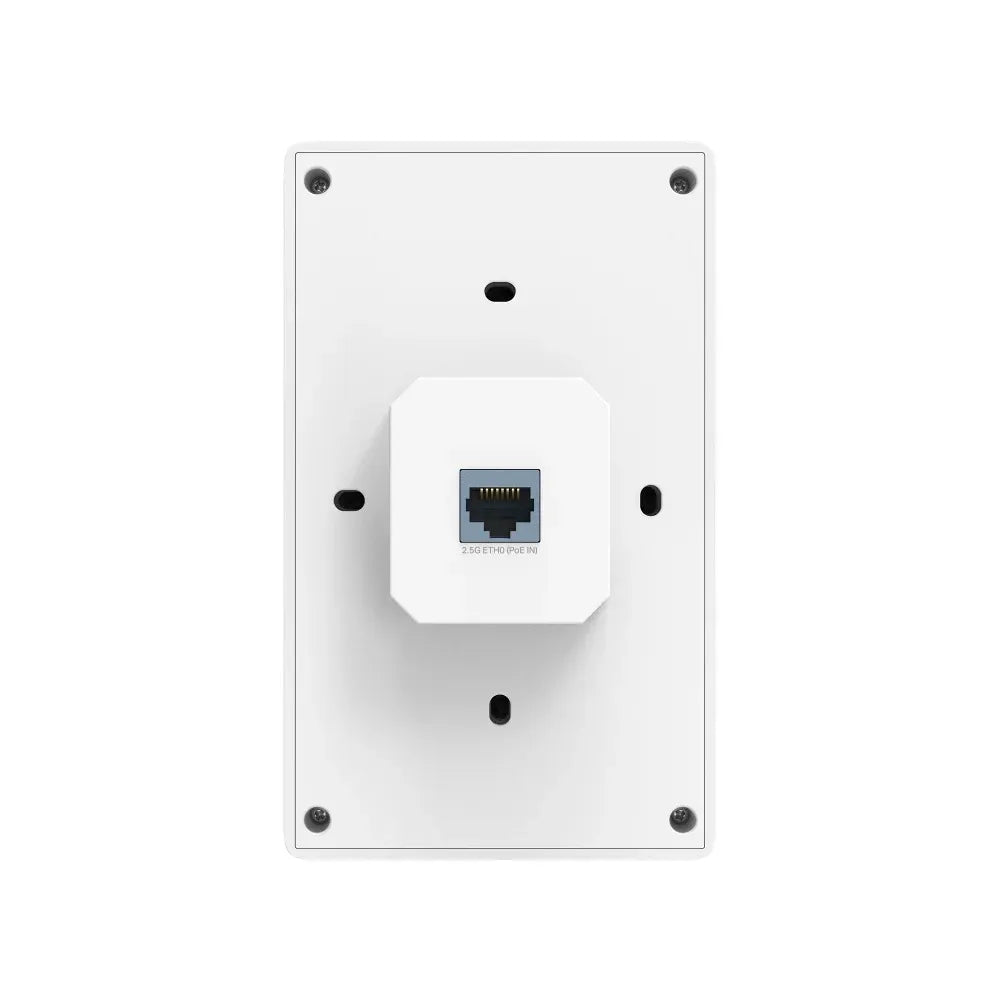

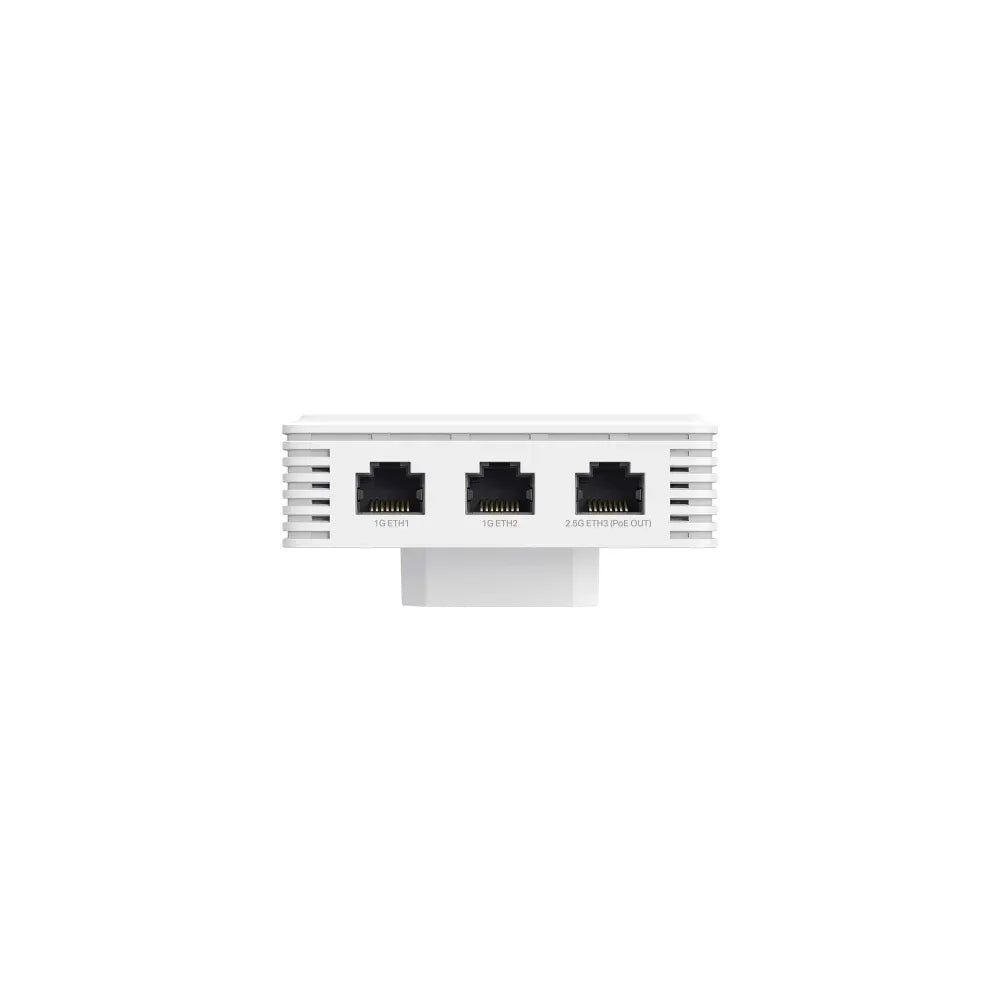

Flexible 2.5G Ethernet Connectivity
The EAP725-Wall includes a 2.5G PoE input port, a 2.5G PoE pass-through port, and two Gigabit Ethernet downlink ports. This combination allows the access point to provide high-speed wireless connectivity while also supporting wired devices within the room or deployment area.
PoE Pass-Through for Connected Devices
The 2.5G downlink port supports PoE pass-through when the access point receives 802.3at or 802.3bt PoE input. With 802.3at input, PoE pass-through supports up to 7 W, while 802.3bt input supports up to 15.4 W. If the downstream device requires more than 7 W, 802.3bt input is required.
Centralized Omada Management
The EAP725-Wall integrates with the TP-Link Omada SDN platform for centralized network management. Compatible Omada Cloud-Based, Hardware, and Software Controllers provide centralized configuration, monitoring, multi-site management, and remote network administration.
Designed for In-Room WiFi Coverage
The wall-mounted design provides a clean and practical installation for hotels, offices, apartments, restaurants, retail spaces, and other environments requiring room-level wireless coverage. The EAP725-Wall is rated for up to 750 ft² (70 m²) coverage under laboratory testing conditions.
Additional Information:
Wireless Performance
WiFi Generation: WiFi 7
Wireless Class: BE5000
Frequency: 2.4 GHz and 5 GHz
5 GHz Signal Rate: Up to 4324 Mbps
2.4 GHz Signal Rate: Up to 688 Mbps
Maximum Combined Wireless Rate: Up to 5012 Mbps
Coverage: 750 ft² (70 m²) under laboratory testing conditions
Concurrent Clients: 250+
Ethernet & PoE Interfaces
Downlink: 1 × 2.5G Ethernet Port + 2 × Gigabit Ethernet Ports
PoE Input: 802.3at/bt PoE
PoE Pass-Through: Supported on the 2.5G downlink port
802.3at PoE Pass-Through: Up to 7 W
802.3bt PoE Pass-Through: Up to 15.4 W
Maximum Power Consumption: 17 W with 802.3at or 802.3bt PoE
WiFi 7 Features
Multi-RUs
4K-QAM
240 MHz Bandwidth on 5 GHz
OFDMA
Beamforming
MU-MIMO
Band Steering
Airtime Fairness
Load Balance
Rate Limit
Automatic Channel Assignment
Transmit Power Control
Seamless Roaming
Wireless Scheduling
RADIUS Accounting
MAC Authentication
Wireless Statistics
Wireless Configuration
Wireless Radio: Enable/Disable
QoS: WMM
Static IP/Dynamic IP: Supported
Reboot Schedule: Supported
Wireless Schedule: Supported
Wireless Security
WPA2-Personal/Enterprise
WPA3-Personal/Enterprise
Captive Portal Authentication
Access Control
Wireless MAC Address Filtering
Wireless Isolation Between Clients
VLAN Support
Rogue AP Detection
Omada Management
Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, and Omada Software Controller
Cloud Access: Yes, requires an Omada controller
Multi-Site Management: Yes
Management VLAN: Yes
L3 Management: Yes
Zero-Touch Provisioning: Yes, requires Omada Cloud-Based Controller
Web-Based Management: Yes
SSH: Yes
SNMP: v1, v2c, v3
System Logging: Local/Remote Syslog
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
Hardware & Physical Specifications
Antennas: 4 × Internal Antennas
2.4 GHz Antennas: 2 × 4 dBi
5 GHz Antennas: 2 × 5 dBi
Bluetooth: Version 5.2
Mounting: Wall Mounting
Mounting Screws: Included
Physical Security Lock: No
Buttons: Reset and LED
Power & Environmental
Maximum Power Consumption: 17 W
802.3bt PoE Out: Up to 15.4 W
802.3at PoE Out: Up to 7 W
Operating Temperature: 0-40 °C (32-104 °F)
Storage Temperature: -40-70 °C (-40-158 °F)
Operating Humidity: 10-90% RH, non-condensing
Storage Humidity: 5-90% RH, non-condensing
Package Contents & Certifications
Certifications: CE, RoHS
ONE YEAR LIMITED MANUFACTURER'S WARRANTY INCLUDED
Explore more TP-Link Omada networking products and wireless solutions here.
For more information regarding the TP-Link EAP725-Wall, visit the official TP-Link Omada website.
