Description
TP-Link ER605 Omada Gigabit VPN Gateway Router
Secure Multi-WAN Networking for Business
The TP-Link ER605 Omada Gigabit VPN Router is a professional wired gateway designed for secure, reliable business networking. With five Gigabit Ethernet ports, multi-WAN connectivity, VPN support, advanced firewall controls, and Omada centralized management, the ER605 provides a flexible networking solution for small businesses, branch offices, retail locations, and other professional environments.
The ER605 integrates with the Omada Software Defined Networking (SDN) platform, allowing network administrators to centrally configure, monitor, and manage compatible Omada devices. It can also be managed independently through its web interface, while compatible Omada management options provide centralized cloud access and mobile management.
Key Features and Benefits
- Five Gigabit Ethernet ports for high-speed wired networking
- Up to three Gigabit WAN ports for multi-line Internet connectivity
- Multi-WAN load balancing helps distribute traffic across Internet connections
- USB 2.0 port supports compatible 4G/3G modem use for WAN backup
- Supports IPsec, OpenVPN, L2TP, and PPTP VPN connections
- Up to 20 IPsec VPN tunnels and up to 16 OpenVPN, L2TP, and PPTP tunnels
- Advanced firewall policies and network security features
- IP/MAC/URL filtering and attack defense capabilities
- Centralized management through the Omada platform
- Omada App support for compatible managed deployments
- Fanless design for quiet operation
- Desktop or wall-mount installation options
Flexible Multi-WAN Connectivity
The ER605 provides one dedicated Gigabit WAN port, two Gigabit LAN ports, and two interchangeable Gigabit WAN/LAN ports. The configurable WAN/LAN ports allow the gateway to support up to three WAN connections, making it suitable for multi-provider Internet deployments. Multi-WAN load balancing distributes traffic according to the bandwidth available from each WAN connection to improve utilization.
USB WAN Backup
A built-in USB 2.0 port supports a compatible 4G/3G modem for WAN backup. This provides an additional Internet connectivity option for businesses that need greater network resilience when a primary wired connection becomes unavailable.
Secure VPN Networking
The ER605 supports multiple VPN technologies for secure remote access and site-to-site connectivity. It supports IPsec, OpenVPN, L2TP, and PPTP, with up to 20 IPsec VPN tunnels and up to 16 tunnels for OpenVPN, L2TP, and PPTP. IPsec features include IKEv1/v2, NAT traversal, Dead Peer Detection, Perfect Forward Secrecy, and multiple encryption options.
Advanced Network Security
Built-in security features help protect business networks against unwanted traffic and common network threats. The ER605 supports firewall policies, source and destination IP-based access control, URL filtering, web filtering, IP-MAC binding, ARP inspection, and protection against TCP, UDP, and ICMP flood attacks.
Centralized Omada Management
When deployed with compatible Omada management solutions, the ER605 can be centrally configured and monitored alongside other compatible network devices. Omada management provides unified configuration, network monitoring, device discovery, statistics, system logs, firmware upgrades, diagnostics, and remote management capabilities.
Ideal Applications
- Small and medium-sized businesses
- Retail stores and POS environments
- Branch offices and remote locations
- Multi-WAN Internet deployments
- Secure site-to-site VPN networks
- Remote-access VPN environments
- Business networks requiring WAN backup
- Omada-managed wired network deployments
Additional Information:

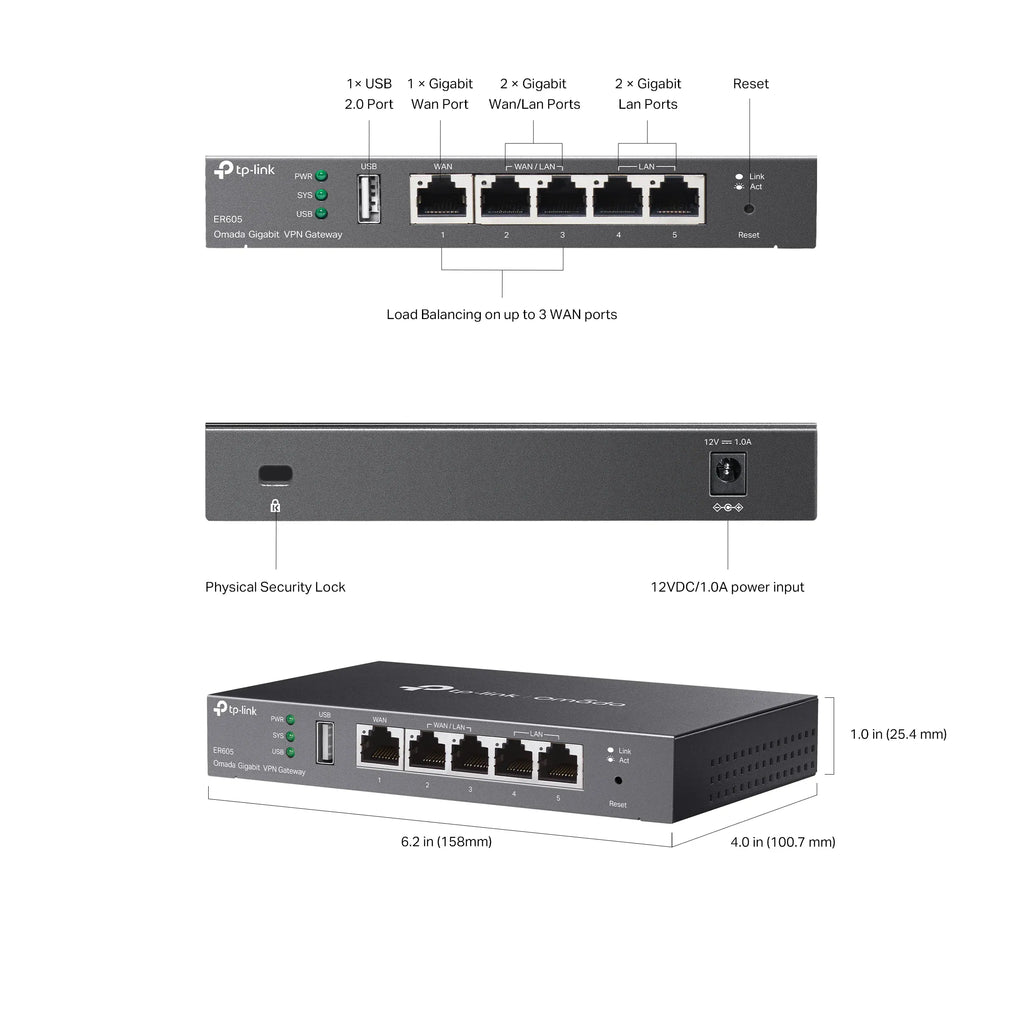

Network Interfaces
2 × Gigabit LAN ports
2 × Gigabit WAN/LAN ports
Up to 3 × Gigabit WAN ports
1 × USB 2.0 port for compatible 4G/3G modem WAN backup
VPN Features
OpenVPN: Up to 16 tunnels
L2TP VPN: Up to 16 tunnels
PPTP VPN: Up to 16 tunnels
IPsec modes: LAN-to-LAN and Client-to-LAN
IKEv1 / IKEv2 support
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
AES128 / AES192 / AES256 encryption
WAN & Routing
Up to 3 Gigabit WAN connections
WAN load balancing
DHCP, PPPoE and static IP connectivity
NAT
Dynamic DNS
DHCP server
VLAN support
Security & Firewall
Web group filtering
URL filtering
Web security features
ARP inspection
ARP scanning
IP-MAC binding
TCP/UDP/ICMP flood defense
TCP scan protection
WAN ping blocking
Management
Centralized management with compatible Omada controllers
Omada Cloud-based management options
Omada App support
Automatic device discovery
Intelligent network monitoring
Unified configuration
Firmware upgrade
Remote management
System logs
Statistics and diagnostics
Backup and restore
Hardware Specifications
Network protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
USB: 1 × USB 2.0
Cooling: Fanless
Reset Button: Yes
Enclosure: Steel

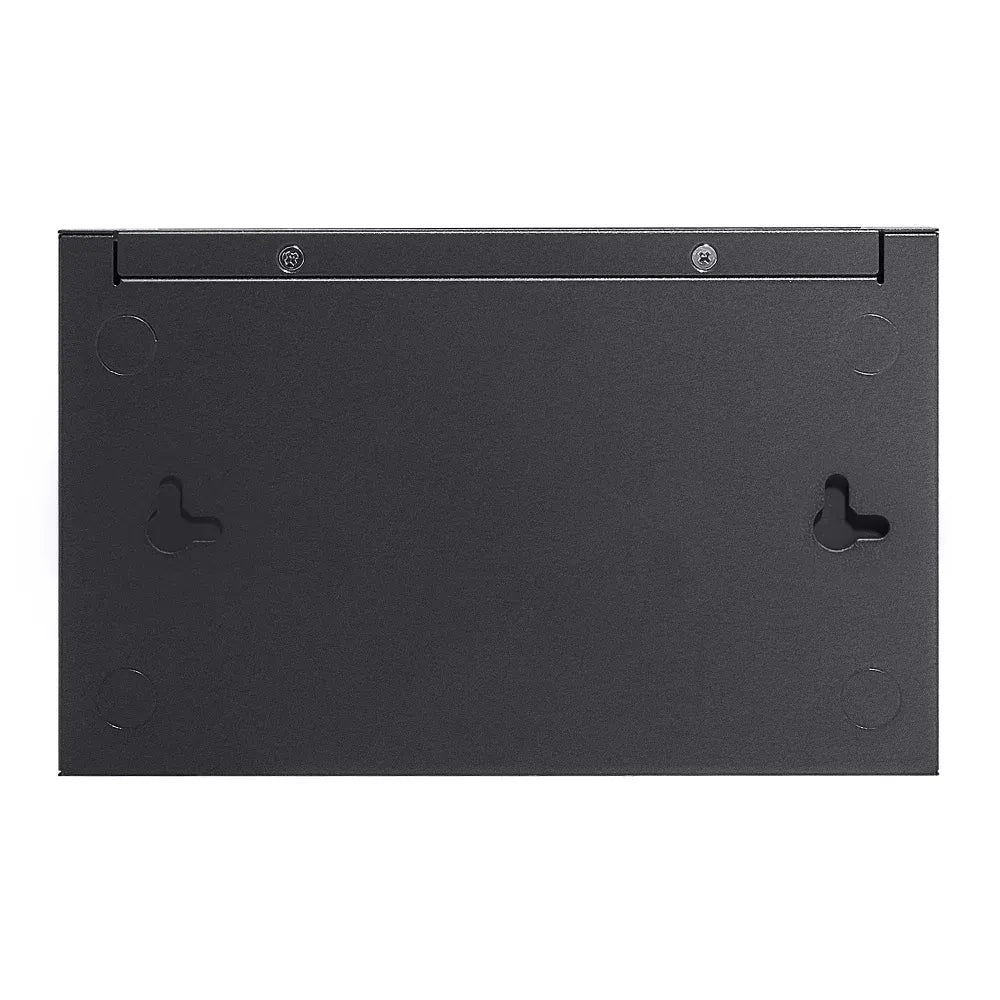

Mounting: Desktop / Wall-mount
Performance
Concurrent Sessions: Up to 150,000
New Sessions per Second: Up to 2,600
WireGuard VPN Throughput: Up to 123.4 Mbps
Power & Environmental
Maximum Power Consumption: 7.94 W
Operating Temperature: 0°C-40°C (32°F-104°F)
Storage Temperature: -40°C-70°C (-40°F-158°F)
Operating Humidity: 10%-90% RH, non-condensing
Storage Humidity: 5%-90% RH, non-condensing
Surge Protection: 4 kV
Physical Specifications
Enclosure: Steel
Cooling: Fanless
Mounting: Desktop / Wall-mount
Package Contents
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
***ONE YEAR LIMITED MANUFACTURER'S WARRANTY INCLUDED
Explore more TP-Link Omada networking products and wireless solutions here.
For more information regarding the TP-Link ER605, visit the official TP-Link Omada website.
