Key Features and Benefits

• Omada Gigabit VPN Gateway for business networks
• Up to 5 WAN ports for multi-line broadband connections
• 1 Gigabit SFP WAN/LAN port
• 5 Gigabit RJ45 ports for WAN/LAN connectivity
• USB 3.0 port supporting USB LTE dongles and storage
• Intelligent load balancing for multi-WAN networks
• Link backup with timing, failover, and online detection
• IPsec, OpenVPN, WireGuard, SSL, L2TP, PPTP, and GRE VPN support
• Up to 100 IPsec VPN tunnels
• Up to 55 OpenVPN tunnels
• Up to 50 SSL VPN tunnels
• Deep Packet Inspection for application traffic management
• Integrated IPS/IDS with 4,000+ attack prevention signature rules
• DoS/DDoS protection and advanced access control
• IP, MAC, location, URL, and domain-based filtering
• Centralized Omada cloud management
• Desktop, wall-mount, and rack-mount installation options
• Fanless design for quiet operation

Multi-WAN Load Balancing and Failover

The ER7206 supports load balancing across up to five WAN ports. Multi-line broadband connections can be distributed according to the bandwidth available on each WAN connection, helping improve utilization. Link backup features provide failover options with timing, online detection, and backup connectivity for greater network availability.

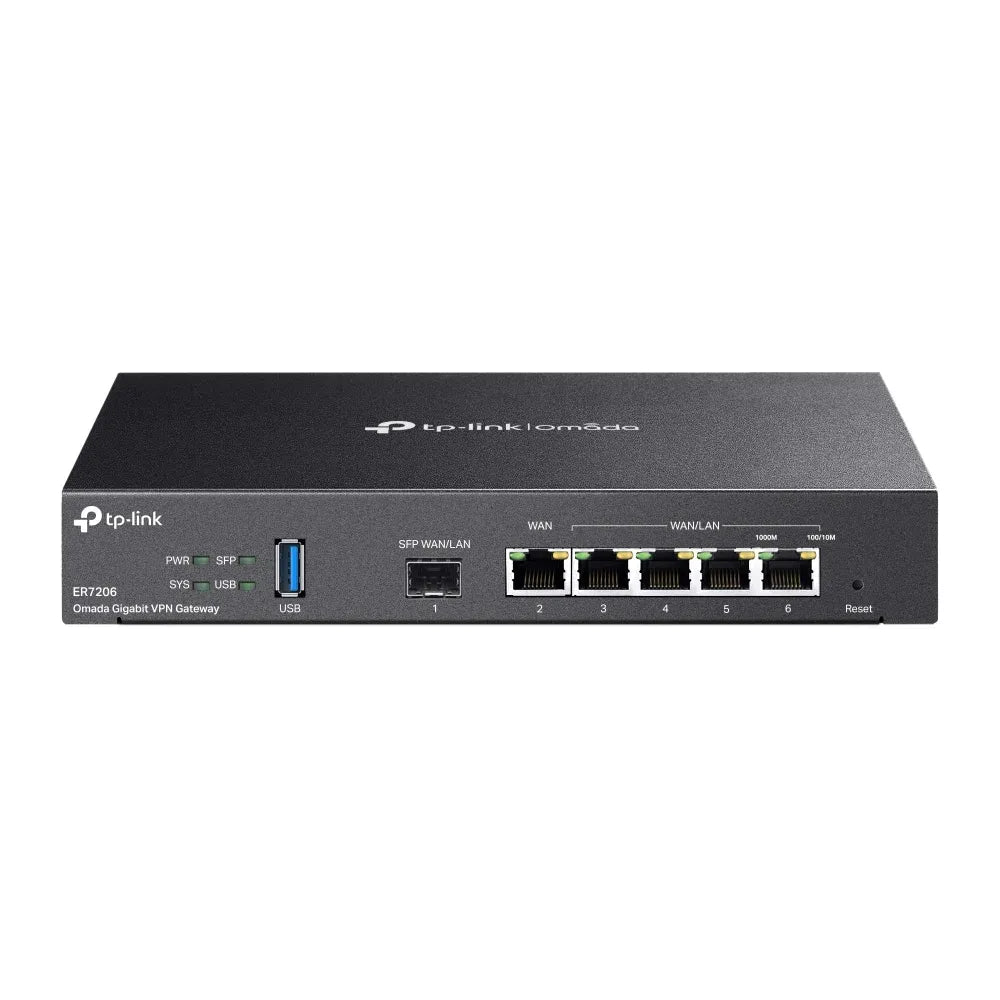

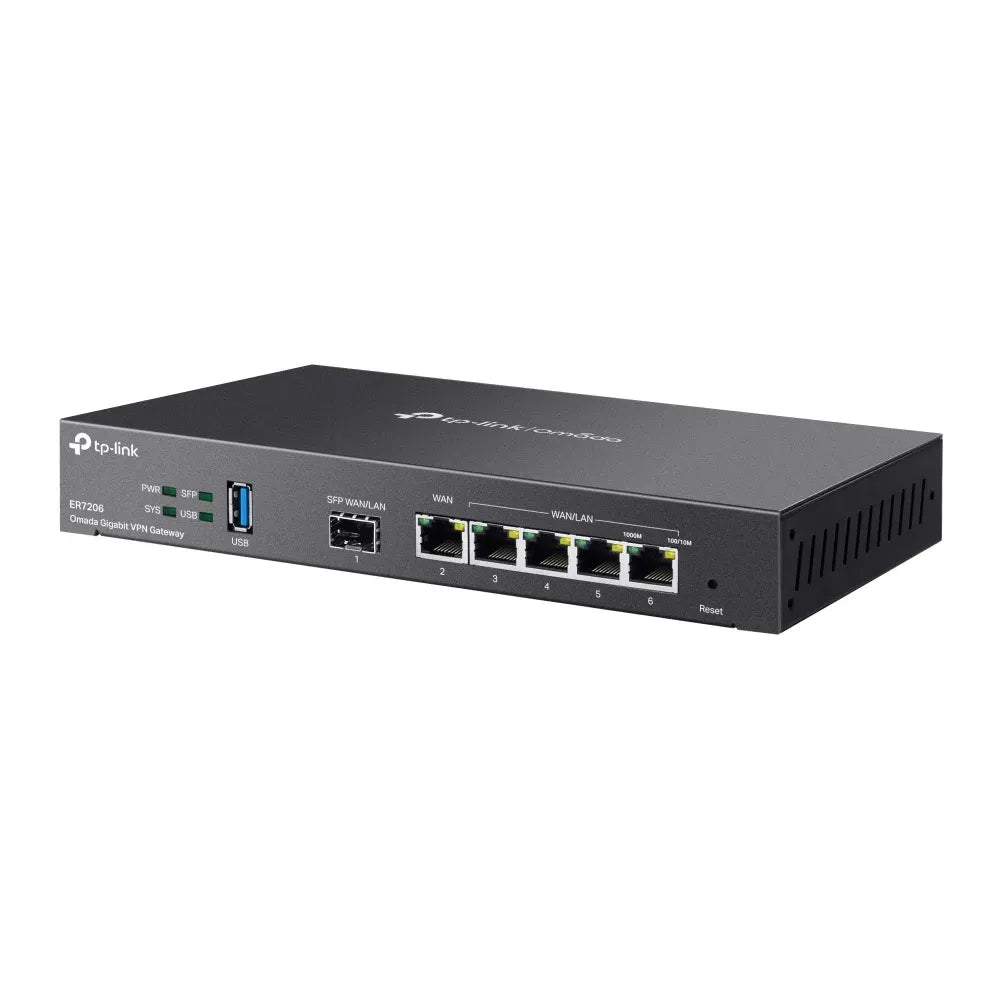

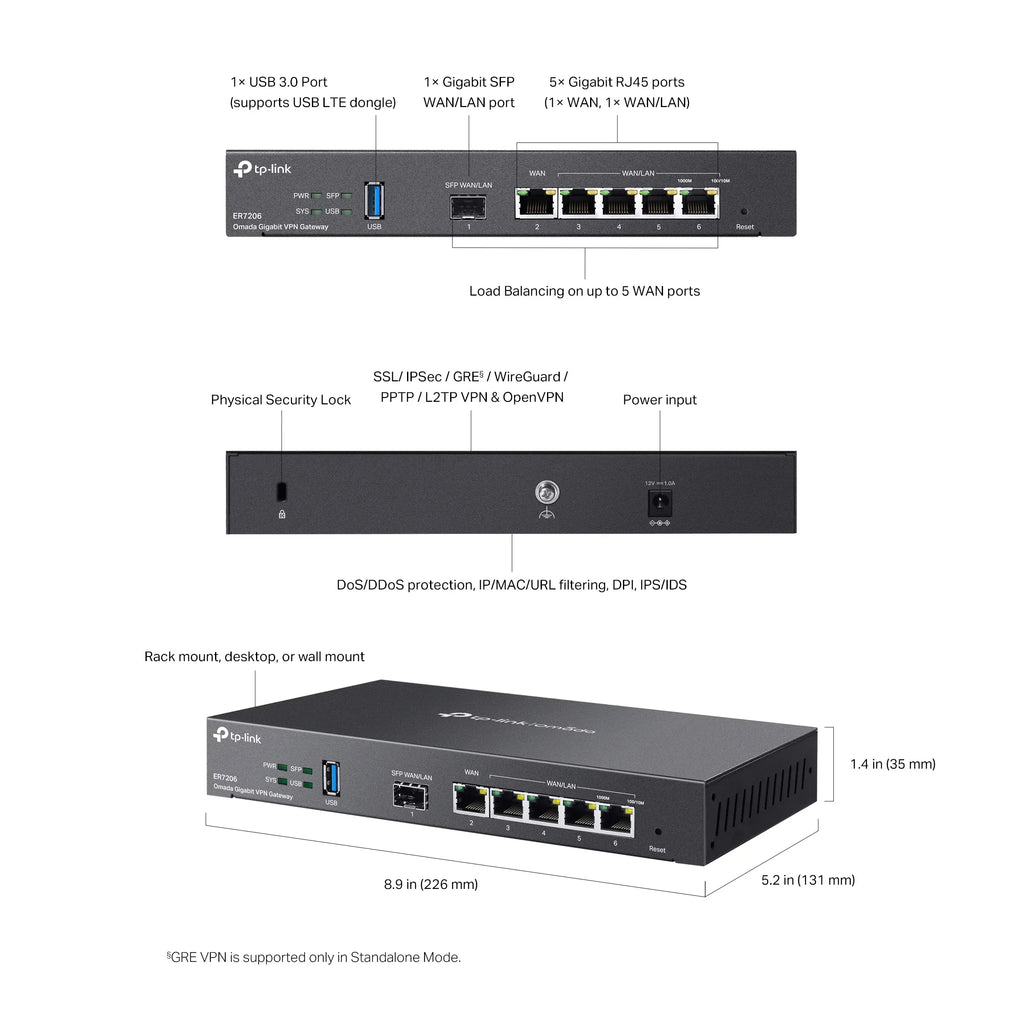

Flexible Gigabit Connectivity

The gateway includes one Gigabit SFP WAN/LAN port and five Gigabit RJ45 ports, including a dedicated Gigabit WAN port and configurable WAN/LAN connectivity. This flexible port arrangement makes the ER7206 suitable for multi-WAN business networks, branch offices, and managed network deployments.

USB LTE Backup and Storage

A built-in USB 3.0 port supports compatible USB LTE dongles for mobile broadband connectivity and USB storage devices. LTE backup can provide an additional WAN connectivity option when primary Internet services are unavailable.

Advanced VPN Connectivity

The ER7206 supports multiple VPN technologies, including IPsec, OpenVPN, WireGuard, SSL VPN, L2TP, PPTP, and GRE VPN. It can be used to create secure connections between offices, support remote users, and protect network communications across different locations.

Business-Grade Network Security

Integrated security features include IPS/IDS, DoS/DDoS protection, access control, IP and MAC filtering, URL filtering, domain filtering, ARP protection, and IP-MAC binding. The built-in IDS/IPS engine uses an attack prevention database with more than 4,000 signature rules for threat detection and defense.

Deep Packet Inspection and Traffic Control

Deep Packet Inspection (DPI) helps identify network applications and manage traffic according to business requirements. Quality of Service, IP-based bandwidth control, application-optimized routing, and policy routing provide additional tools for managing network performance.

Centralized Omada Management

When deployed with a compatible Omada management platform, the ER7206 can be centrally managed alongside compatible Omada gateways, switches, and access points. Centralized features include device discovery, intelligent monitoring, unified configuration, abnormal event warnings, remote management, and zero-touch provisioning.

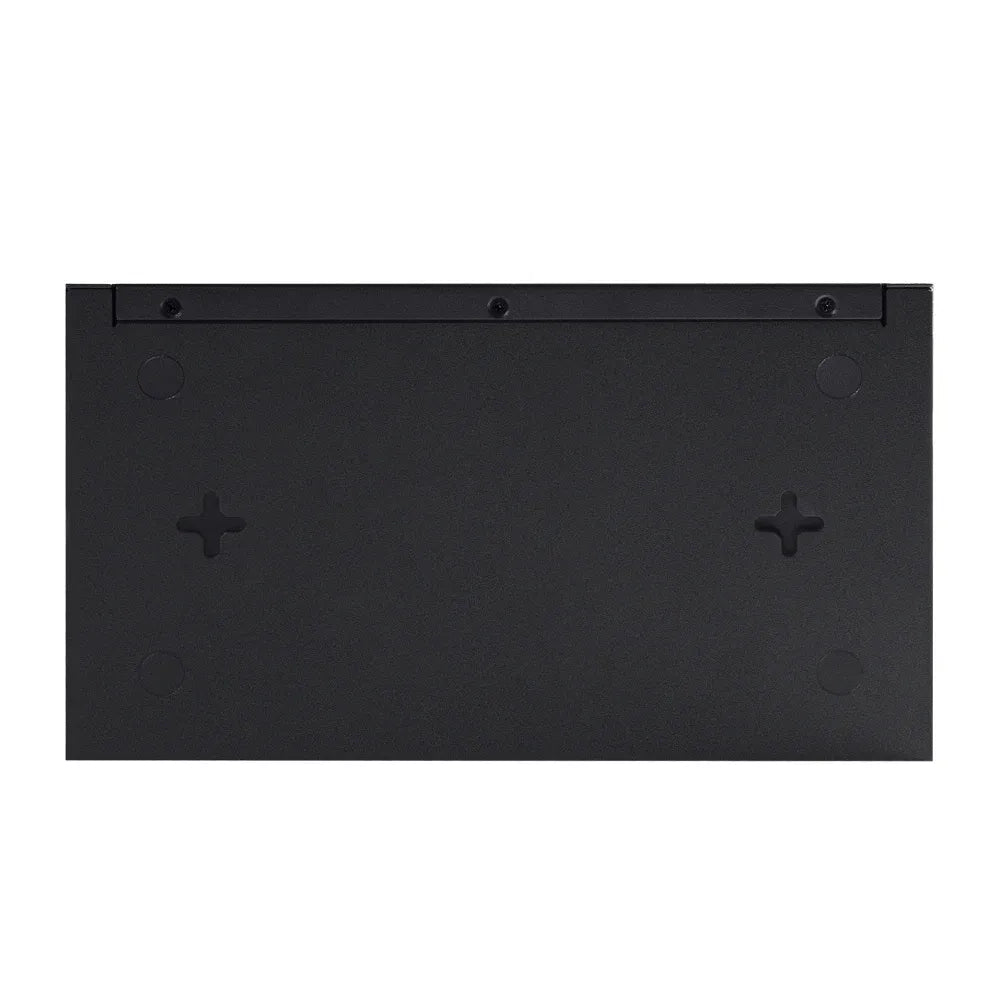

Flexible Deployment

The ER7206 features a fanless steel enclosure and supports desktop, wall-mount, and rack-mount installation. Its compact design provides flexibility for offices, network cabinets, branch locations, and other professional networking environments.
