Description

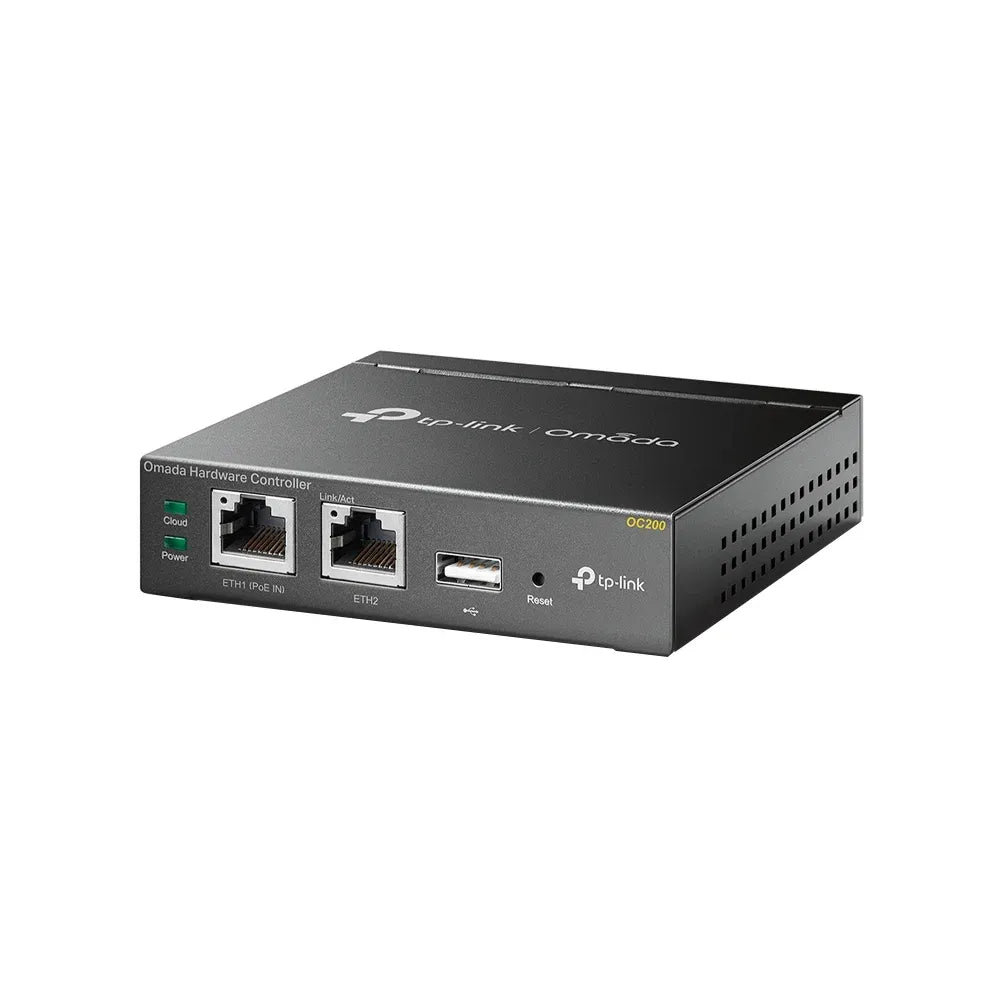

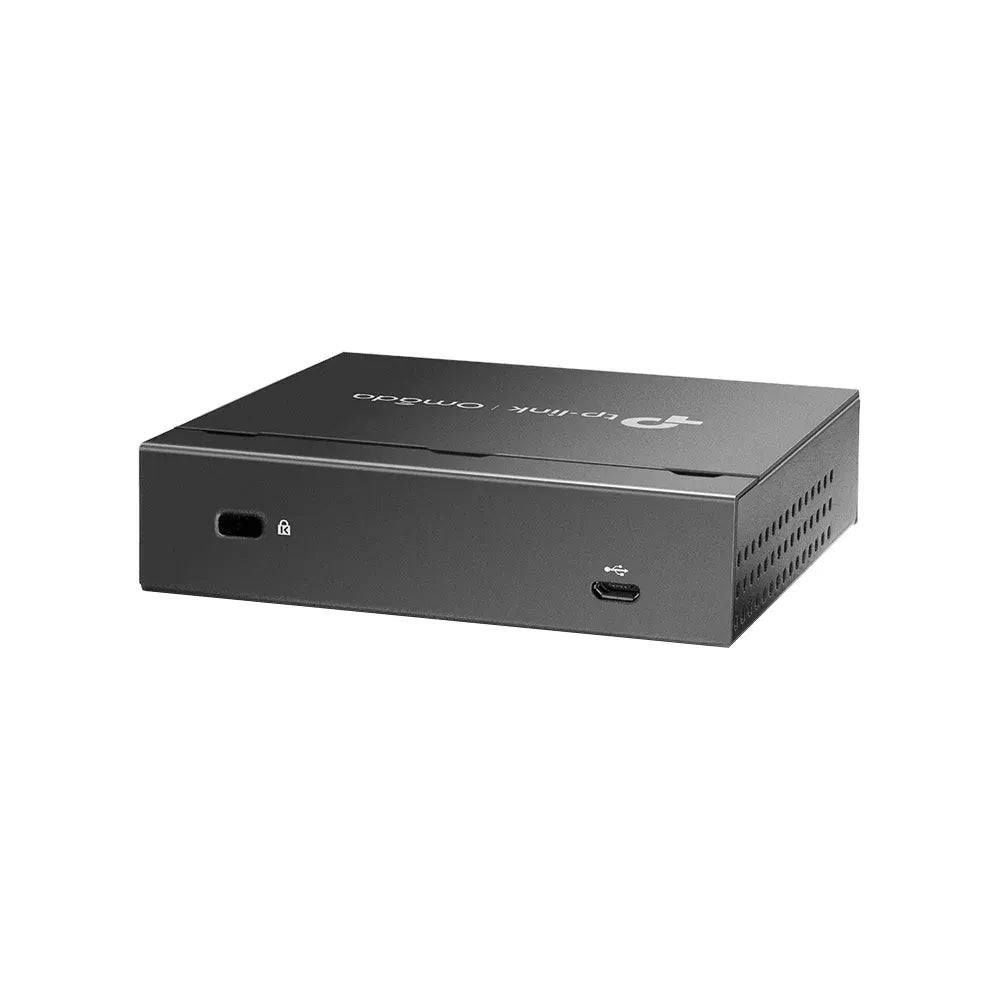

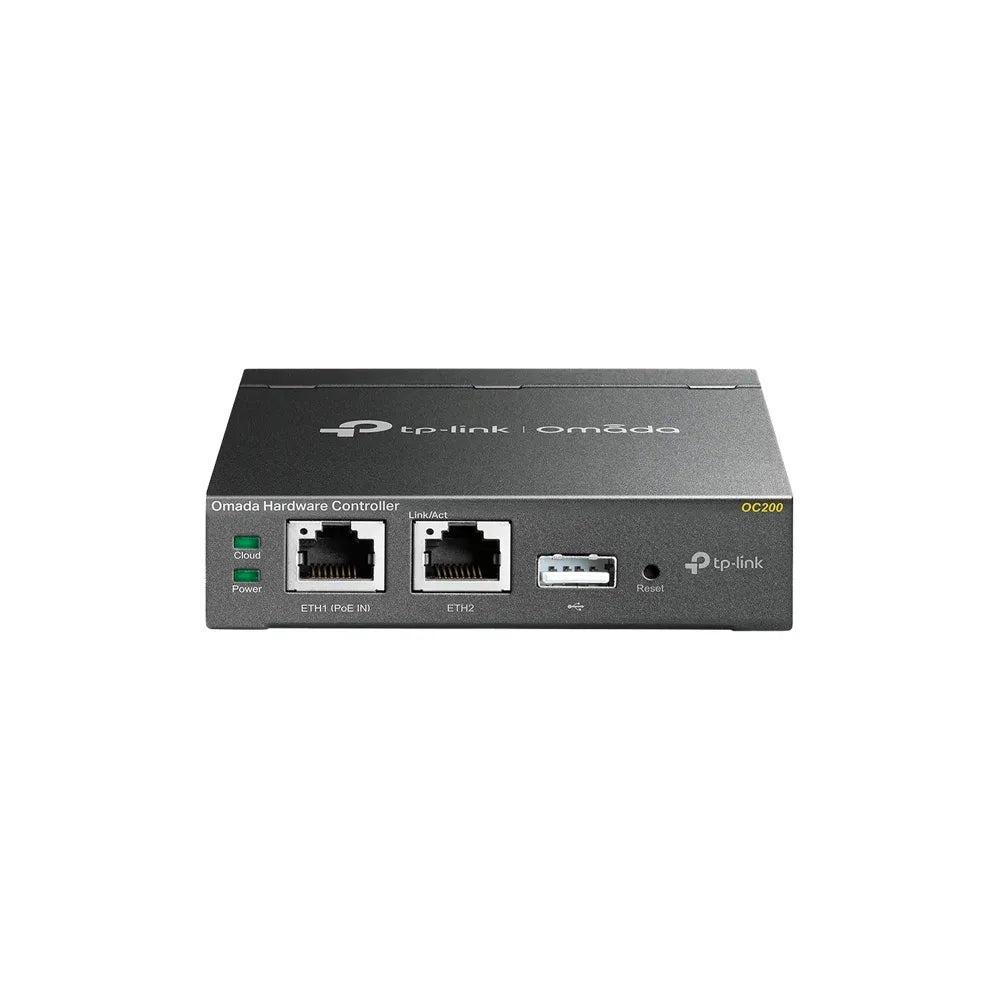

TP-Link OC200 Omada Hardware Controller for Business Networks
Professional Centralized Management for Omada Business Networks
The TP-Link OC200 Omada Hardware Controller provides centralized management for compatible Omada business networks without requiring a dedicated PC or server. Designed for convenient and reliable network administration, the OC200 allows IT administrators to monitor network activity, manage connected devices, configure captive portals, upgrade firmware, schedule reboots, and manage multiple sites from a centralized platform.
With cloud access, Omada App support, multi-site management, and centralized configuration, the OC200 is designed for businesses that need efficient network administration across offices, retail locations, hospitality environments, and other commercial deployments.
Key Features and Benefits
- Professional centralized management for compatible Omada networks
- Manage up to 100 Omada access points
- Manage up to 20 JetStream switches
- Manage up to 10 Omada routers
- Supports up to 1,000 connected clients
- Cloud access for remote network management
- Multi-site management for distributed business networks
- Omada App support for convenient mobile management
- 802.3af/at PoE support for flexible installation
- USB port for automatic backup functionality
- Durable metal casing for reliable business deployment
- Real-time network monitoring and traffic analysis
- Automatic device discovery and unified configuration
- Batch configuration and firmware upgrades
- Captive portal configuration for secure guest access
- Access control, wireless isolation, and MAC filtering

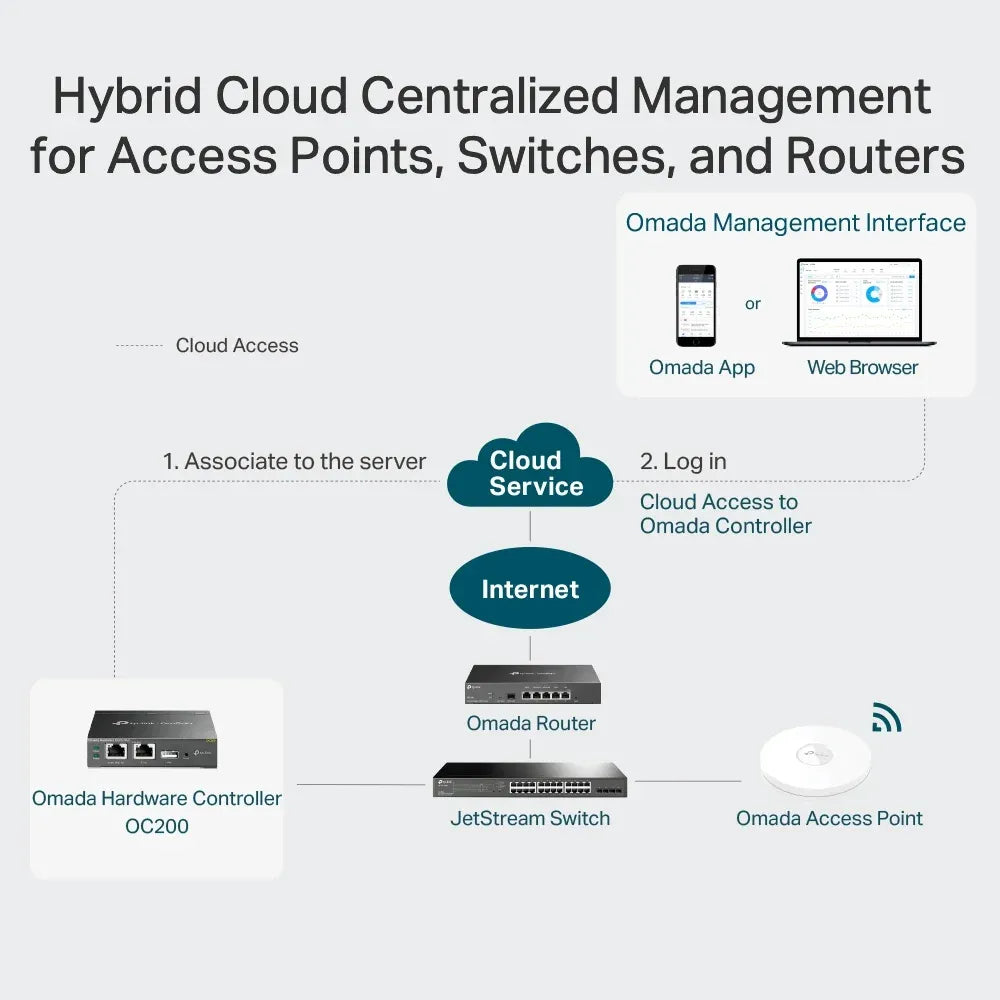

Centralized Omada Network Management
The OC200 provides a dedicated hardware platform for centralized management of compatible Omada networking devices. Administrators can manage network infrastructure through a single interface while monitoring statistics, viewing network activity, configuring settings, and maintaining connected devices.
Cloud Access from Anywhere
Cloud access allows administrators to manage compatible Omada networks from virtually anywhere remotely. The Omada App provides convenient mobile access for monitoring and configuring the controller without requiring administrators to be physically present at the network location.
Multi-Site Business Management
For businesses operating across multiple locations, the OC200 supports multi-site management, helping administrators maintain centralized visibility and configuration across distributed Omada network deployments.

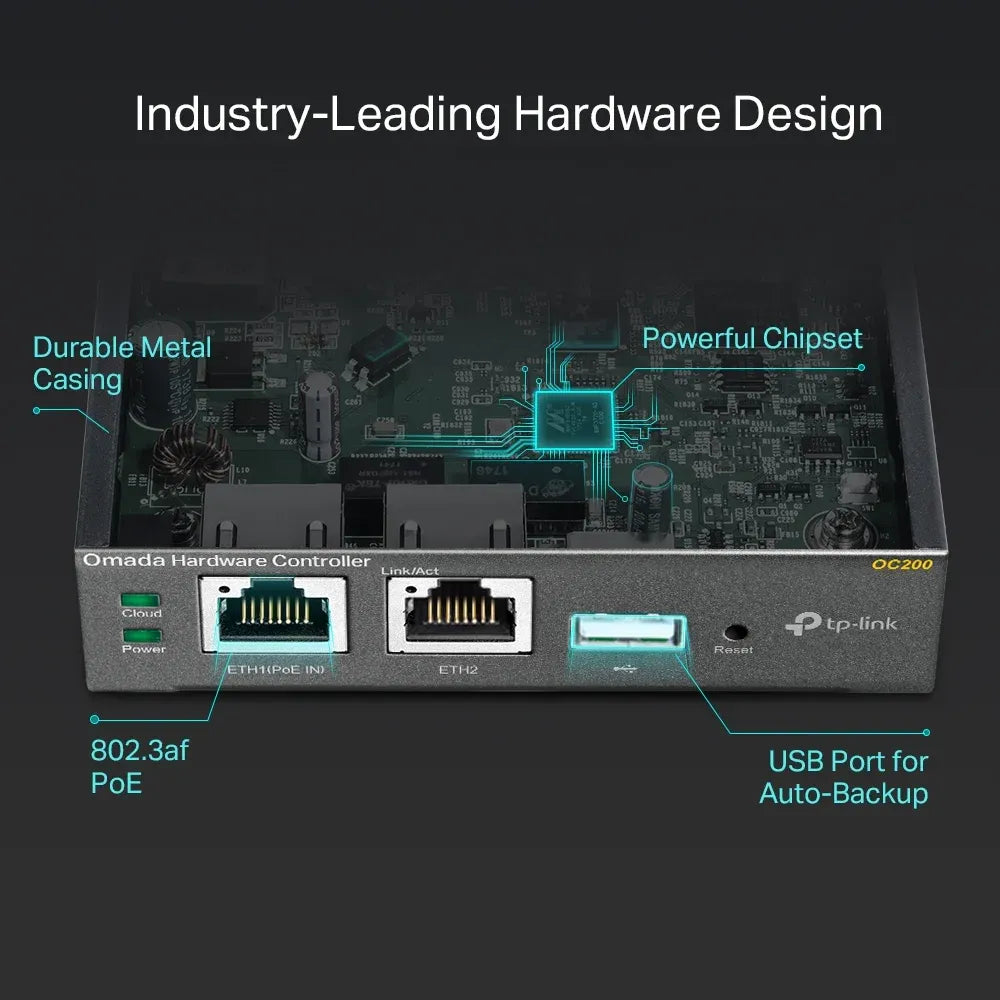

Flexible PoE and USB Connectivity
The OC200 supports 802.3af/at PoE as well as Micro USB power, providing flexible installation options. Its USB 2.0 port supports automatic backup functionality, while the compact metal enclosure is designed for dependable business network deployment.
Secure Guest Network Management
The OC200 supports captive portal functionality for guest networks, including multiple authentication options. Wireless isolation, access control, MAC filtering, and SSID-to-VLAN mapping help administrators create controlled and secure guest network environments.
Network Management Features:
- Automatic device discovery
- Unified network configuration
- Batch configuration
- Batch firmware upgrading
- Intelligent network monitoring
- Abnormal event warnings
- Reboot scheduling
- Captive portal configuration
- Cloud access
- Multi-site management
- L3 management
- Omada App management
Additional Information:
Hardware & Interfaces
USB Port: 1 × USB 2.0
Power Port: 1 × Micro USB
Power Supply: 802.3af/at PoE or Micro USB, DC 5V / minimum 1A
Dimensions: 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)
Enclosure: Durable metal casing
Centralized Management
JetStream Switches: Up to 20
Omada Routers: Up to 10
Connected Clients: Up to 1,000
Omada App: Yes
Cloud Access: Yes
L3 Management: Yes
Multi-Site Management: Yes
Network Management
Unified Configuration: Yes
Batch Configuration: Yes
Batch Firmware Upgrade: Yes
Intelligent Network Monitoring: Yes
Abnormal Event Warnings: Yes
Reboot Schedule: Yes
Captive Portal Configuration: Yes
LED ON/OFF Control: Yes
Network Features
Multi-SSID Management: Yes
Load Balancing: Yes
Band Steering: Yes
Airtime Fairness: Yes
Beamforming: Yes
Rate Limiting: Yes
Wireless Scheduling: Yes
QoS: Yes
Wireless Security & Guest Access
Access Control: Yes
Wireless MAC Address Filtering: Yes
Wireless Client Isolation: Yes
SSID-to-VLAN Mapping: Yes
Rogue AP Detection: Yes
Guest Network Support: Yes
Facebook Wi-Fi Authentication: Supported
SMS Authentication: Supported
Voucher Authentication: Supported
Power & Installation
PoE Power: Supported
Micro USB Power: DC 5V / Minimum 1A
USB Backup: Automatic backup supported
Installation: Flexible PoE or Micro USB powered deployment
Physical & Environmental Specifications
Enclosure: Metal
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: -40°C - 70°C (-40°F - 158°F)
Operating Humidity: 10% - 90% RH, non-condensing
Storage Humidity: 5% - 90% RH, non-condensing
Certifications & Package Contents
Package Contents: Omada Hardware Controller
Quick Installation Guide: Included
Ethernet Cable: Included
***ONE YEAR LIMITED MANUFACTURER'S WARRANTY INCLUDED
Explore more TP-Link Omada networking products and wireless solutions here.
For more information regarding the TP-Link OC200, visit the official TP-Link Omada website.
