Description

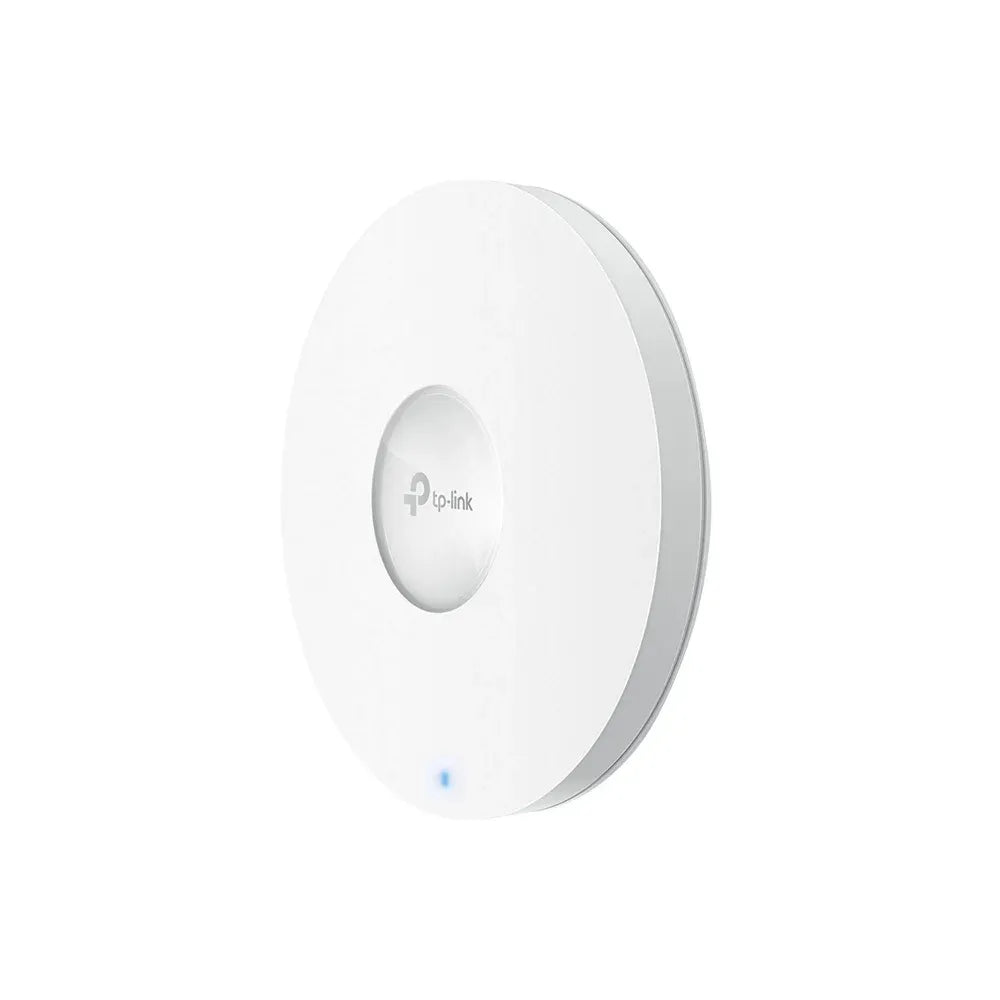

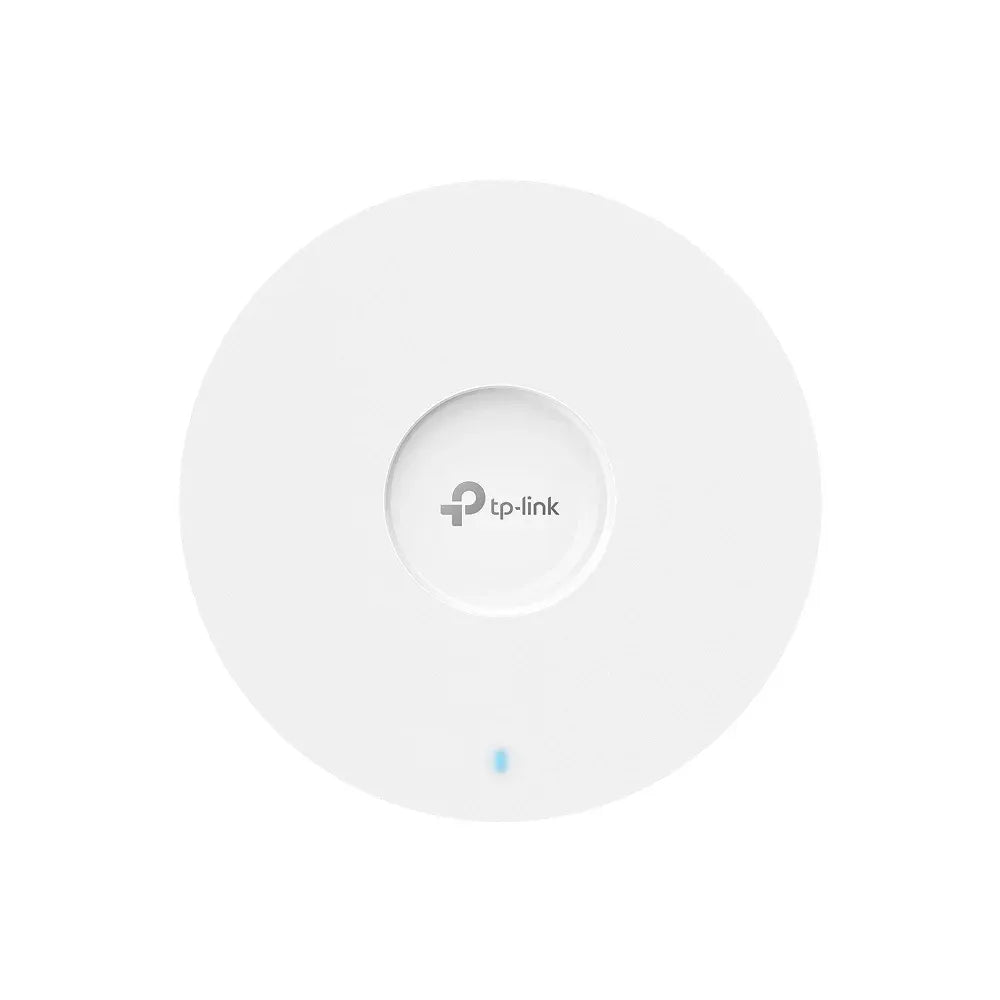

TP-Link AX1800 WiFi 6 Ceiling Mount Access Point
High-Performance WiFi 6 for High-Density Business Networks
The TP-Link EAP620 HD is an AX1800 WiFi 6 ceiling mount access point designed for reliable wireless connectivity in offices, hotels, classrooms, cafés, retail locations, and other high-density environments. It delivers combined wireless speeds of up to 1775 Mbps, with up to 1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band.
Built with WiFi 6 technologies including OFDMA, MU-MIMO, 1024-QAM, beamforming, band steering, load balancing, and airtime fairness, the EAP620 HD helps provide efficient wireless performance when many devices are connected simultaneously. It also integrates with the TP-Link Omada SDN platform for centralized network management, monitoring, and scalable deployment.
Key Features and Benefits
- AX1800 dual-band WiFi 6 with up to 1775 Mbps combined wireless speed
- Up to 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- High-density connectivity with increased capacity for multiple devices
- 4 spatial streams with OFDMA and MU-MIMO technology
- 1024-QAM and longer OFDM symbol for improved WiFi efficiency

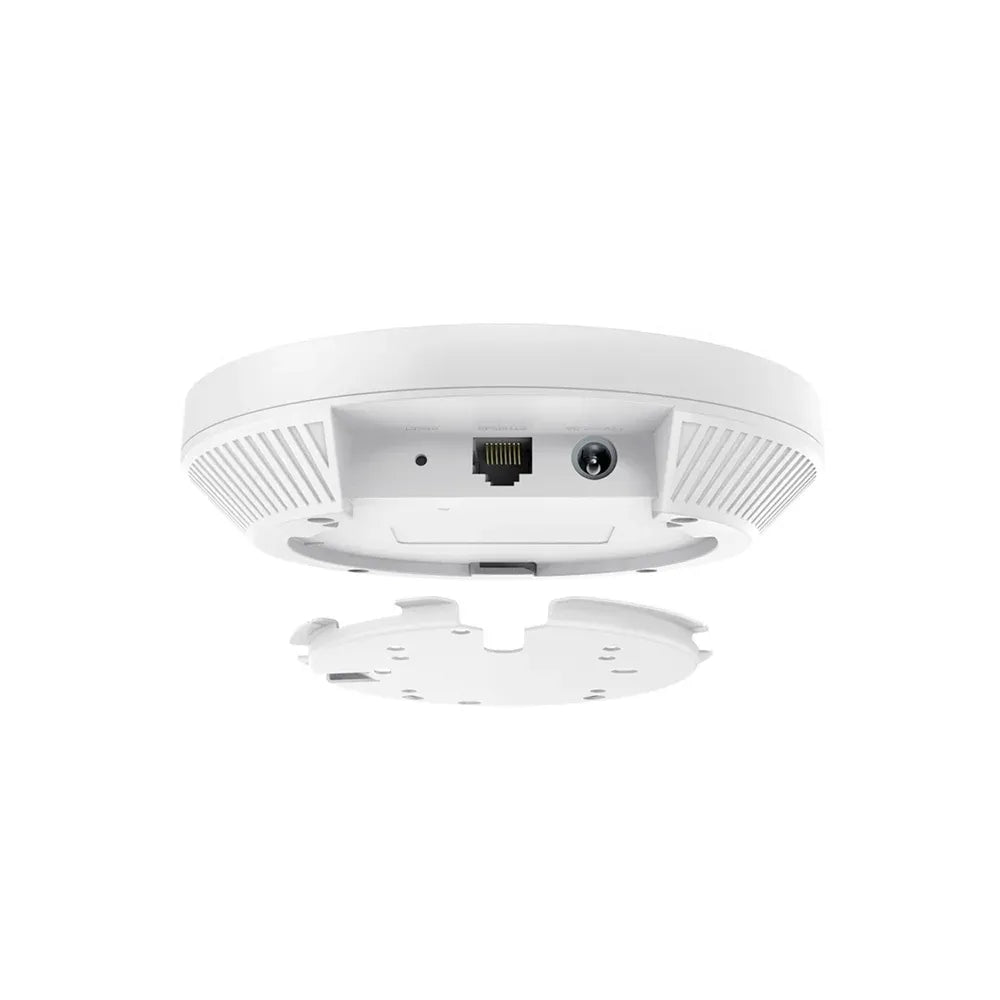

- 1× Gigabit Ethernet RJ-45 port
- Supports IEEE 802.3at PoE+ and 48 V Passive PoE
- 12 V DC power option with power adapter included
- Centralized management through the Omada SDN platform
- Omada App support for convenient network management
- Omada Mesh and seamless roaming support
- Up to 16 SSIDs with flexible wireless network management
- Captive portal, access control, VLAN mapping, and wireless isolation
- Supports WPA, WPA2, and WPA3 wireless security

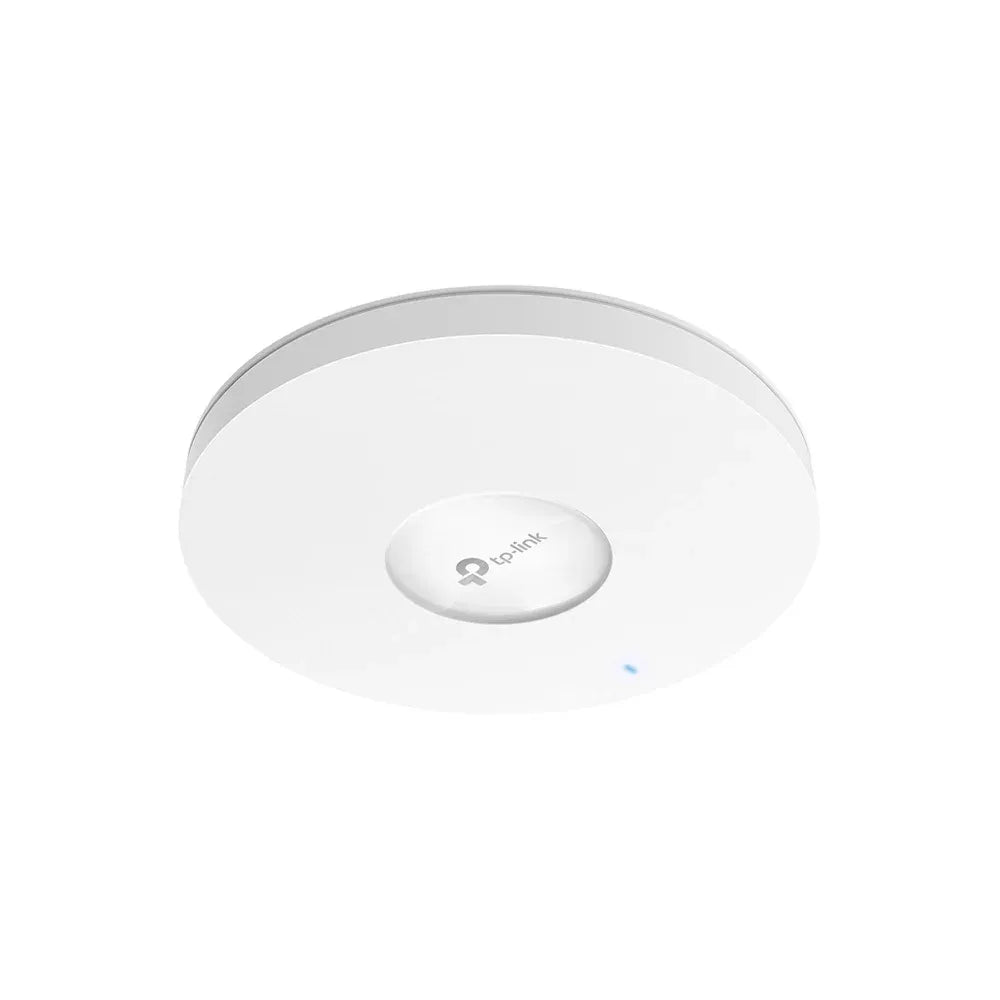

- Ceiling, wall, and junction box mounting options

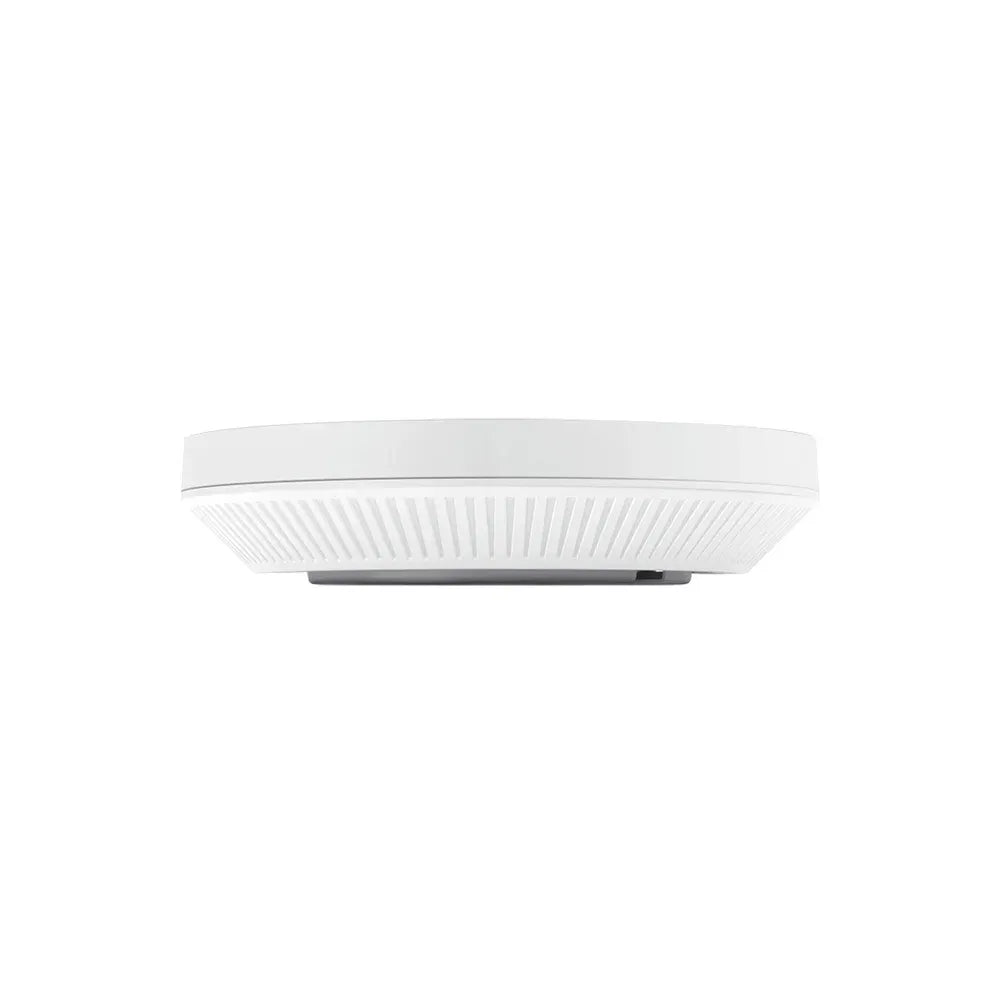

- Compact ultra-slim design for modern commercial installations
Fast and Efficient WiFi 6 Connectivity
The EAP620 HD uses WiFi 6 technologies to efficiently serve multiple connected devices. Its 4-stream architecture, OFDMA, MU-MIMO, and 1024-QAM help improve wireless capacity and throughput for demanding business environments.
High-Density Wireless Performance
Designed for environments with many simultaneous users, the EAP620 HD supports high client density while using features such as load balancing and airtime fairness to help maintain a smooth wireless experience across connected devices.
Centralized Omada SDN Management
The EAP620 HD integrates with the TP-Link Omada SDN ecosystem, allowing compatible networks to be centrally managed through Omada controllers and software. Management features include centralized monitoring, multi-site management, management VLAN support, zero-touch provisioning, and cloud access.
Flexible Deployment and Power Options
The access point supports 802.3at PoE+, 48 V Passive PoE, and 12 V DC power. Ceiling and wall mounting kits are included, while junction box mounting provides additional installation flexibility.
Seamless Roaming and Omada Mesh
With support for 802.11k/v/r seamless roaming and Omada Mesh, the EAP620 HD can help maintain wireless connectivity as users move between access points and provides flexible deployment options for areas where additional Ethernet cabling may be difficult.
Additional Information:
Wireless Performance
WiFi Generation: WiFi 6
Wireless Class: AX1800
Frequency Bands: 2.4 GHz and 5 GHz
5 GHz Speed: Up to 1201 Mbps
2.4 GHz Speed: Up to 574 Mbps
Combined Speed: Up to 1775 Mbps
Spatial Streams: 4
OFDMA: Yes
MU-MIMO: Yes
1024-QAM: Yes
Beamforming: Yes
Network & Interfaces
PoE Support: IEEE 802.3at PoE+ and 48 V Passive PoE
DC Power: 12 V / 1.5 A
Reset Button: Yes
Antenna: Internal omnidirectional antenna
2.4 GHz Antenna Gain: 2 × 4 dBi
5 GHz Antenna Gain: 2 × 5 dBi
Wireless Features
Automatic Channel Assignment: Yes
Transmit Power Control: Yes
QoS / WMM: Yes
Seamless Roaming: 802.11k/v/r
Omada Mesh: Yes
Band Steering: Yes
Load Balance: Yes
Airtime Fairness: Yes
Rate Limit: Yes
Wireless Scheduling: Yes
Wireless Statistics: Yes
Security & Management
Access Control: Yes
MAC Address Filtering: Yes
Wireless Client Isolation: Yes
SSID to VLAN Mapping: Yes
Rogue AP Detection: Yes
802.1X Support: Yes
Wireless Security: WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Omada App: Supported
SNMP: v1, v2c, v3
SSH: Yes
Web Management: HTTP/HTTPS
L3 Management: Yes
Multi-Site Management: Yes
Management VLAN: Yes
Zero-Touch Provisioning: Supported with compatible Omada Cloud-Based Controller
Omada Management
Omada Hardware Controller: OC300 and OC200 supported
Omada Software Controller: Supported
Cloud Access: Yes through supported Omada controllers
Centralized Management: Yes
Intelligent Monitoring: Yes
Email Alerts: Yes
LED ON/OFF Control: Yes
Local and Remote Syslog: Supported
Coverage & Capacity
Concurrent Clients: 1,020+ under specified conditions
Wireless Optimization: Band Steering, Load Balance, Airtime Fairness, Beamforming
High-Density Support: Yes
Physical Specifications
Antenna Type: Internal omnidirectional
Mounting: Ceiling, wall, and junction box
Mounting Kits: Included
Power & Environmental
Maximum Power Consumption: Up to 14.9 W via PoE depending on region
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: -40°C - 70°C (-40°F - 158°F)
Operating Humidity: 10% - 90% RH, non-condensing
Storage Humidity: 5% - 90% RH
Certifications & Package Contents
Package Includes: EAP620 HD Access Point
Power Adapter: Included
Ceiling / Wall Mounting Kits: Included
Installation Guide: Included
***ONE YEAR LIMITED MANUFACTURER'S WARRANTY INCLUDED
Explore more TP-Link Omada networking products and wireless solutions here.
For more information regarding the TP-Link EAP620 HD, visit the official TP-Link Omada website.
